Quartz Plain Edge Linear Drain Sine WaveFrom: $250.00

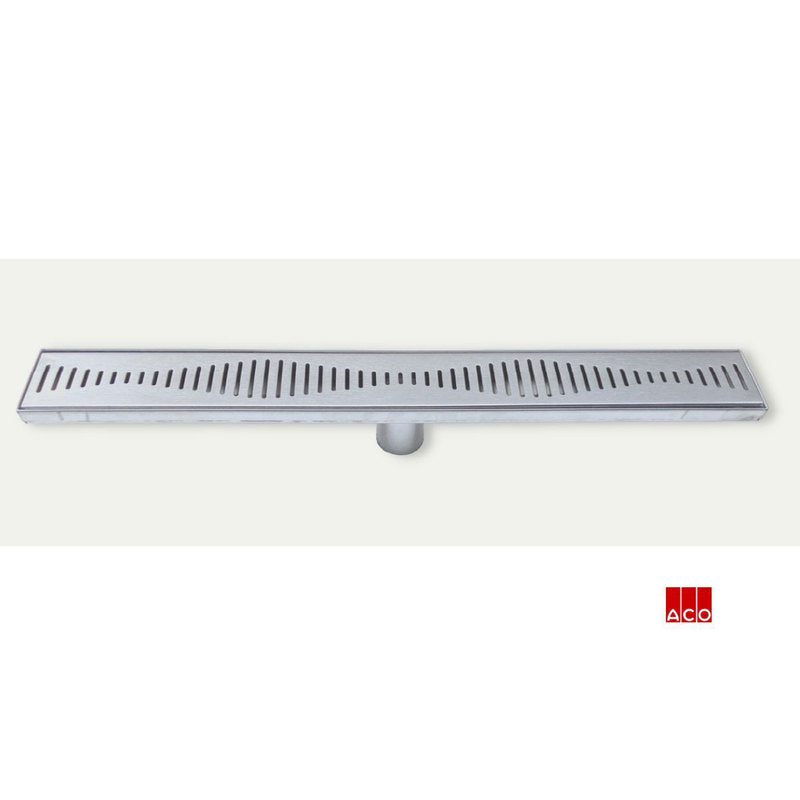

Quartz Plain Edge Linear Shower Drain - Sine Wave
Sine Wave - a smooth repetitive oscillation, A sine wave is a curve with this shape
Include: Grate cover, - (EXTRA optional) Channel Body, Lifting Key, Adjustable Feet, Hardware
To be use in wood joist application with CPE membrane
Available sizes 28", 32", 36", 40" and 48"
Linear Shower Channel Drains Provide Improved Function and Good Looks
- 2" diameter central vertical outlet
- Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
- Channel width: 3.3“ (84 mm)
- Bodies are fully welded and leak tested prior to dispatch.
- Stainless steel clad flexible coupling connects outlet to pipe system
- Plastic support feet aid installation
- Optional accessories include plumbing connectors, water activated LED lights and debris strainer
Channels and gratings are electropolished. This process creates a shiny defect-free surface which minimizes cleaning and maintenance for a high class finish. The textured appearance of the grate is still visible after electro-polishing and helps reduce the appearance of finger prints and soap residue.
A linear shower channel drain, such as QuARTz by ACO, provide a number of advantages over circular point drains. First of all, flexibility in positioning allows you to place the shower channel drain in the center of a shower or other wet area, against the walls, or let it act as the threshold. As a threshold, it becomes the water barrier that keeps dry zones dry. This allows for more of an open floor plan and traffic flow because it allows the shower or other wet area to be open, without the need of a door.
QuARTz linear shower channel drains come in standard tile widths which mean all those tricky, complicated tile cuts around radii to make something fit are eliminated. The innovation of a flat, shower channel adds to the aesthetic beauty of your bathroom area. The layout can be more open and uncluttered by doors and doorway thresholds that were in place to be water barriers. Now that your floor has its own water barrier in the form of a QuARTz linear shower channel drain, that shower door is no longer needed.
QuARTz linear shower channel drains have a distinctive, attractive European design. Drains are available in 28", 32", 36", 40", 48" and 55" lengths. In combination, it is likely that any area where you would like to have a linear shower channel fills the space, can be done. With eight different slot designs, and two types of finishes, there is a design and finish to fit all styles and tastes.
