SunTouch SlabHeat Cable 100-149 Sq Ft 120V Radiant Slab Heating
Description
Description
SunTouch Radiant SlabHeat Cables 100 to 149 sq ft
Electric Radiant Heating Cable for Concrete Slabs
Alternate pricing available - Contact us for pricing

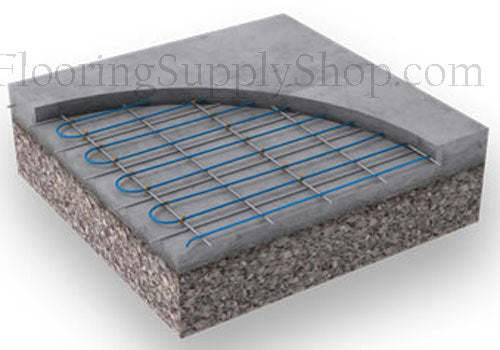

The SunTouch SlabHeat cable system is designed to deliver powerful, consistent radiant heat within concrete slabs. Engineered to heat the slab, the floor surface, and the surrounding space, it provides reliable comfort across a wide range of applications regardless of room size, shape, or slab thickness.
Voltage: 120 Volt only
Coverage Area & Spec:
- Coverage: 100 to 149 sq ft

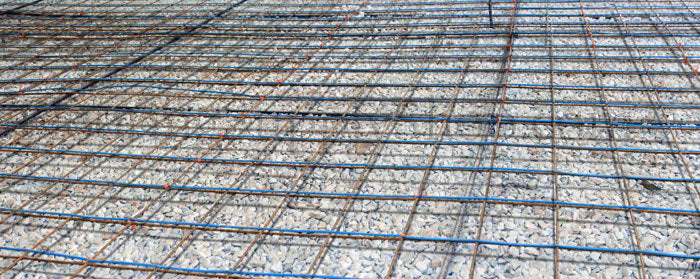

- Spacing range: 4 inch to 6 inch O.C.
- Length: 241 linear ft
- Amperage draw: 10.3 amps
- Watts: 1230
- Resistance: 9 to 12 ohms
Free Shipping on all our Heating Floors.
System Construction:

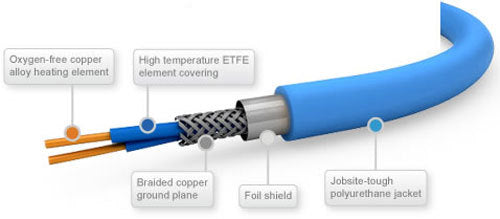

SlabHeat is a series resistance heating cable built with a durable polyurethane outer jacket, full braided copper ground, ETFE insulation, and dual copper heating elements. The single-point power connection simplifies installation and reduces wiring complexity.
Typical Applications:
- 4 inch spacing: sunrooms, basements, bathrooms, kitchens, and high heat loss areas (insulation is recommended for optimal performance)
- 6 inch spacing: hallways, entryways, garages, workshops, and low heat loss areas
Important Installation Note:
Never install cables closer than 4 inches apart, as this may create overheating and potentially damage the system.
Key Features:
- UL listed for safety and performance
- Polyurethane jacket for superior durability, flexibility, and abrasion resistance
- Full braided copper ground for enhanced system protection
- ETFE insulation for excellent heat resistance and long-term reliability
- Dual conductor design allows single-point electrical connection
- Compatible with SunStat thermostats and relay systems
- Suitable for residential and commercial installations
- 10 year manufacturer warranty
Benefits:
- Provides even, consistent radiant heat throughout the slab
- No ducts, vents, or forced air systems required
- Energy-efficient heating solution
- Maintenance-free operation
- Durable construction for long-term performance
Cares about the safety of your love one? CLICK HERE to See SunTouch EMF
Click here for SunTouch VIDEO Library
