SereneDrains Linear Shower Drain Linear Wedge - 24From: $399.00

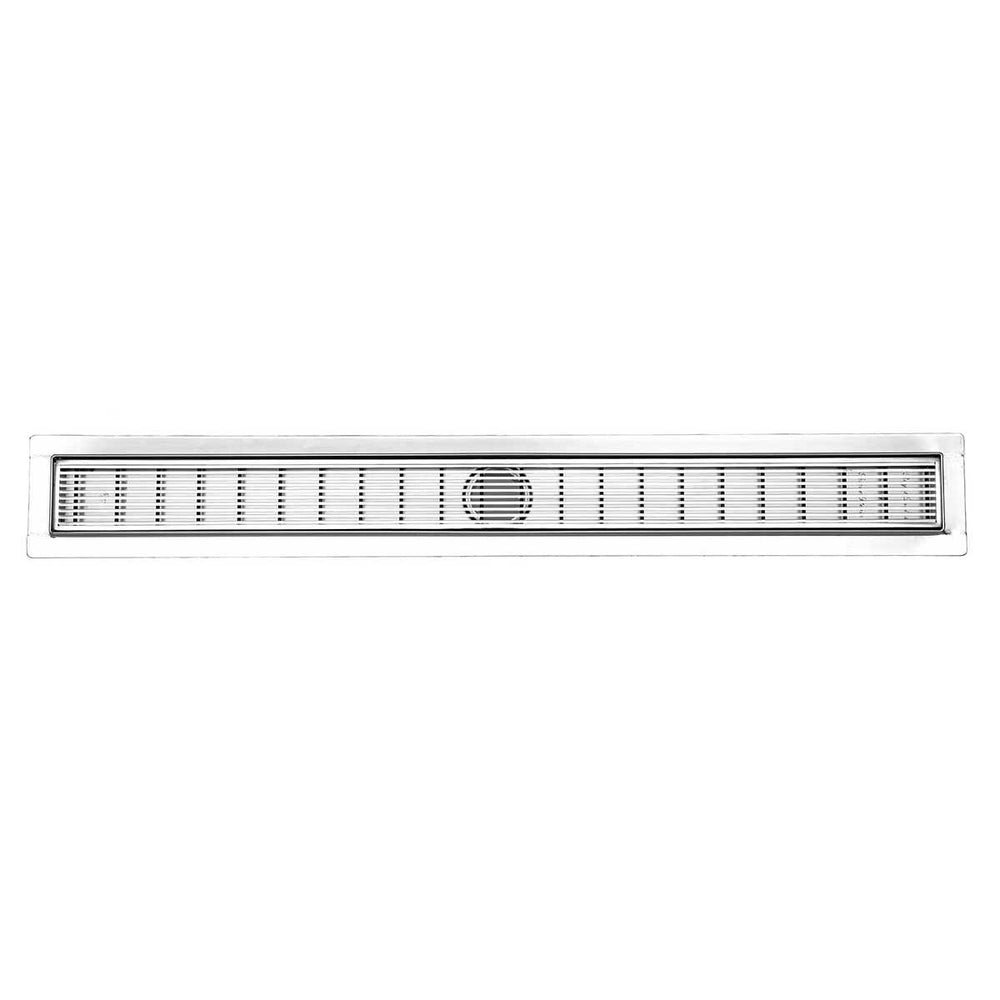

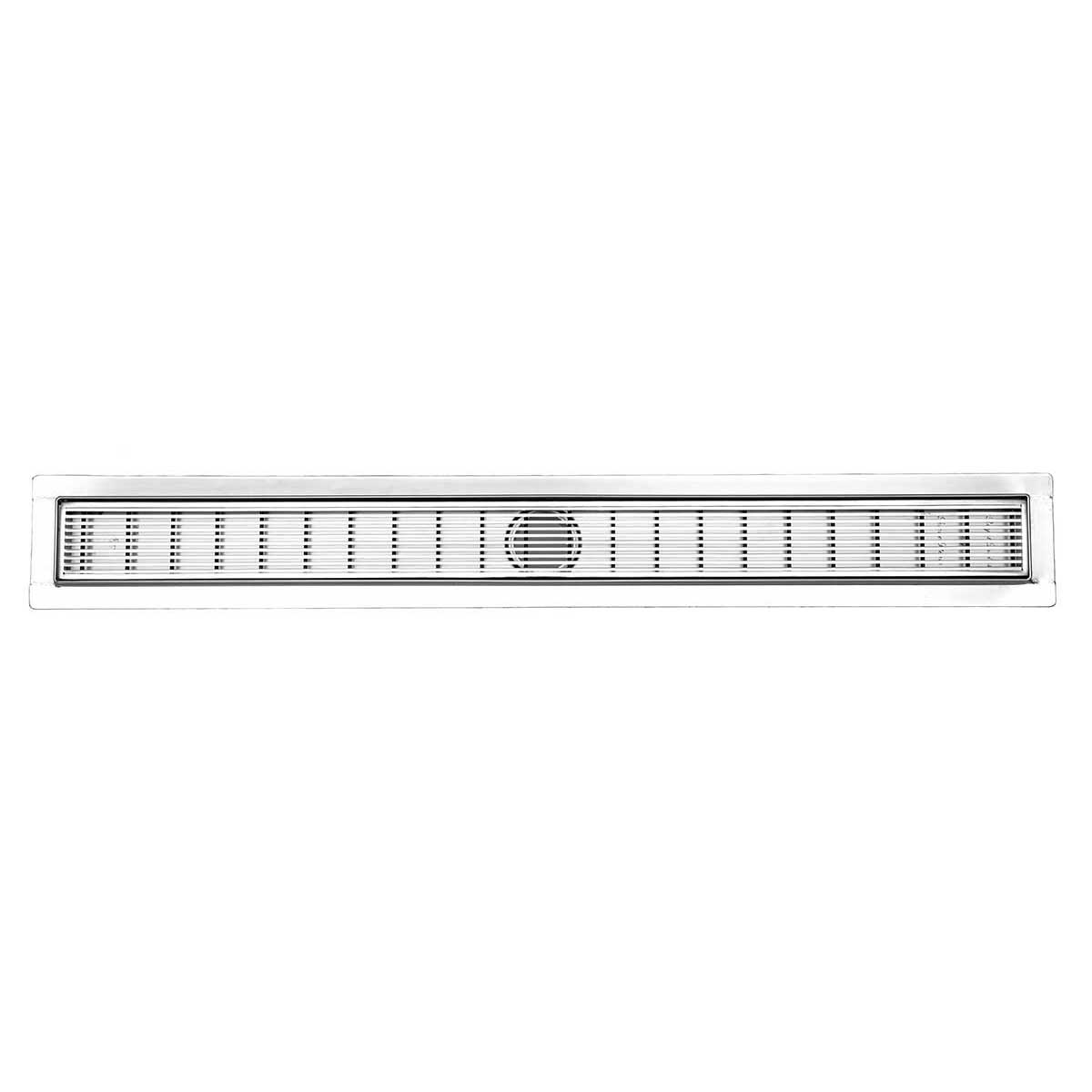

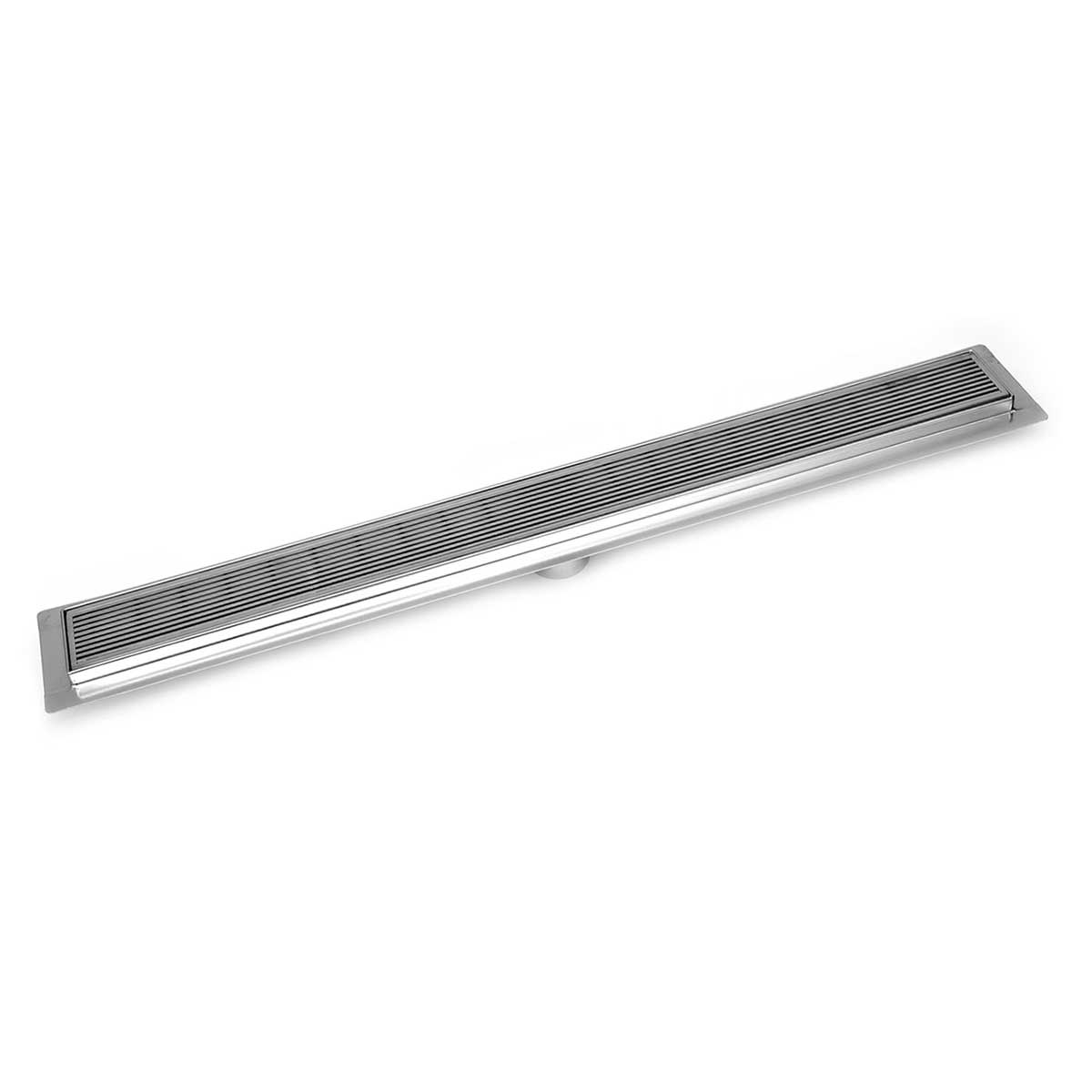

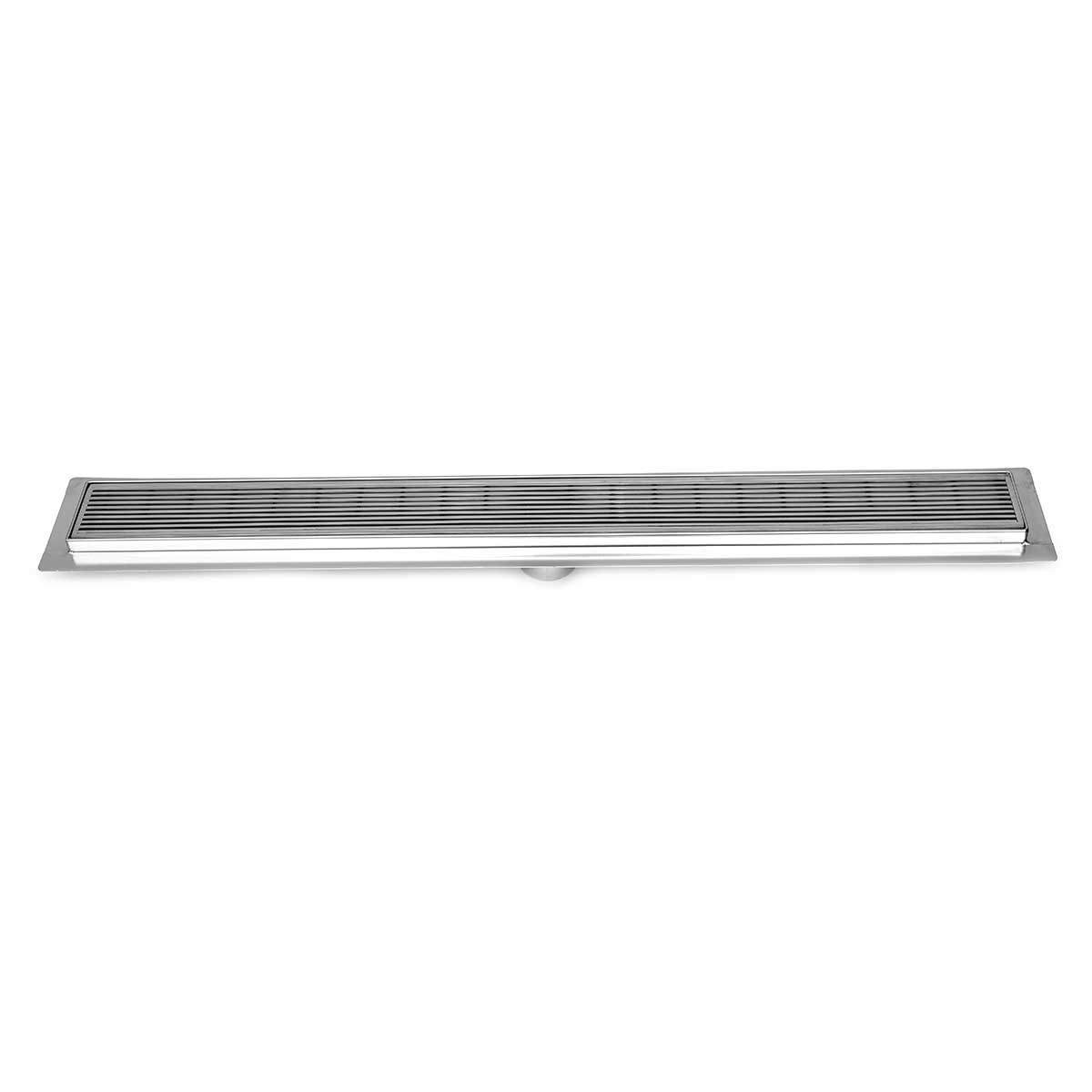

SereneDrains Linear Shower Drain Linear Wedge - 24

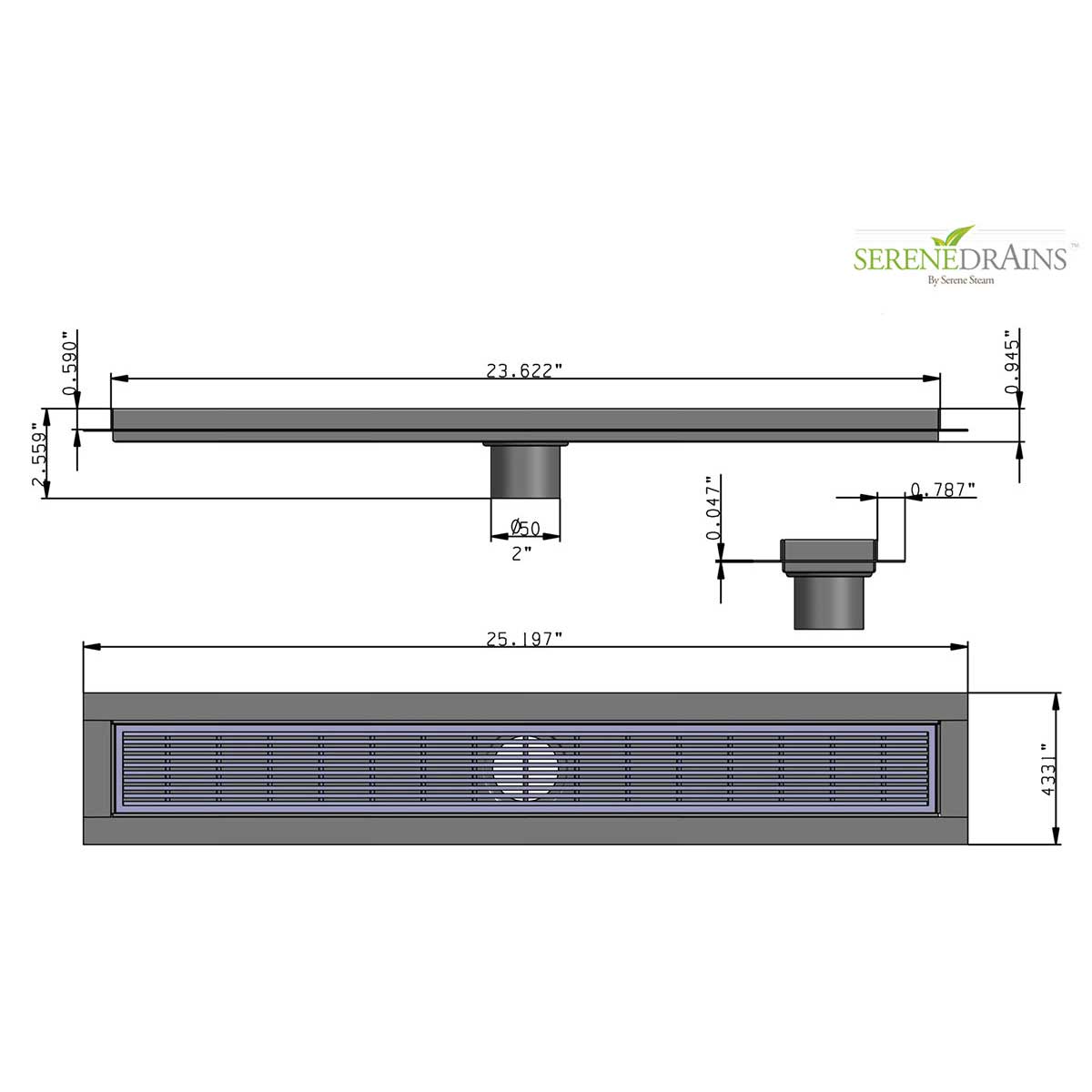

Overall Size 25.2" x 4 3/8" - Net Size 23 1/2" x 2 3/4"
Available Color; Brushed Stainless, Polished Stainless both with Side drain outlet

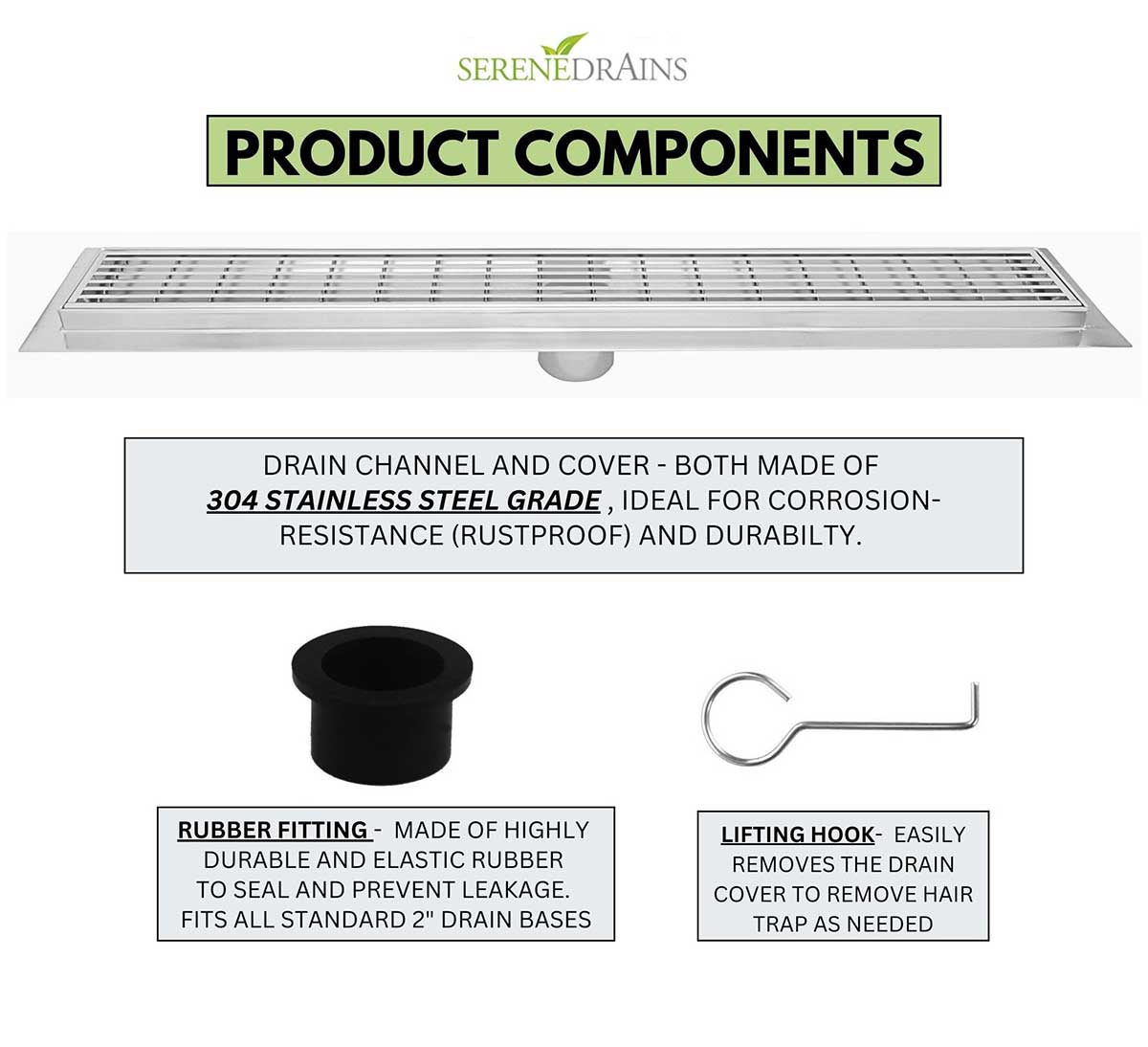

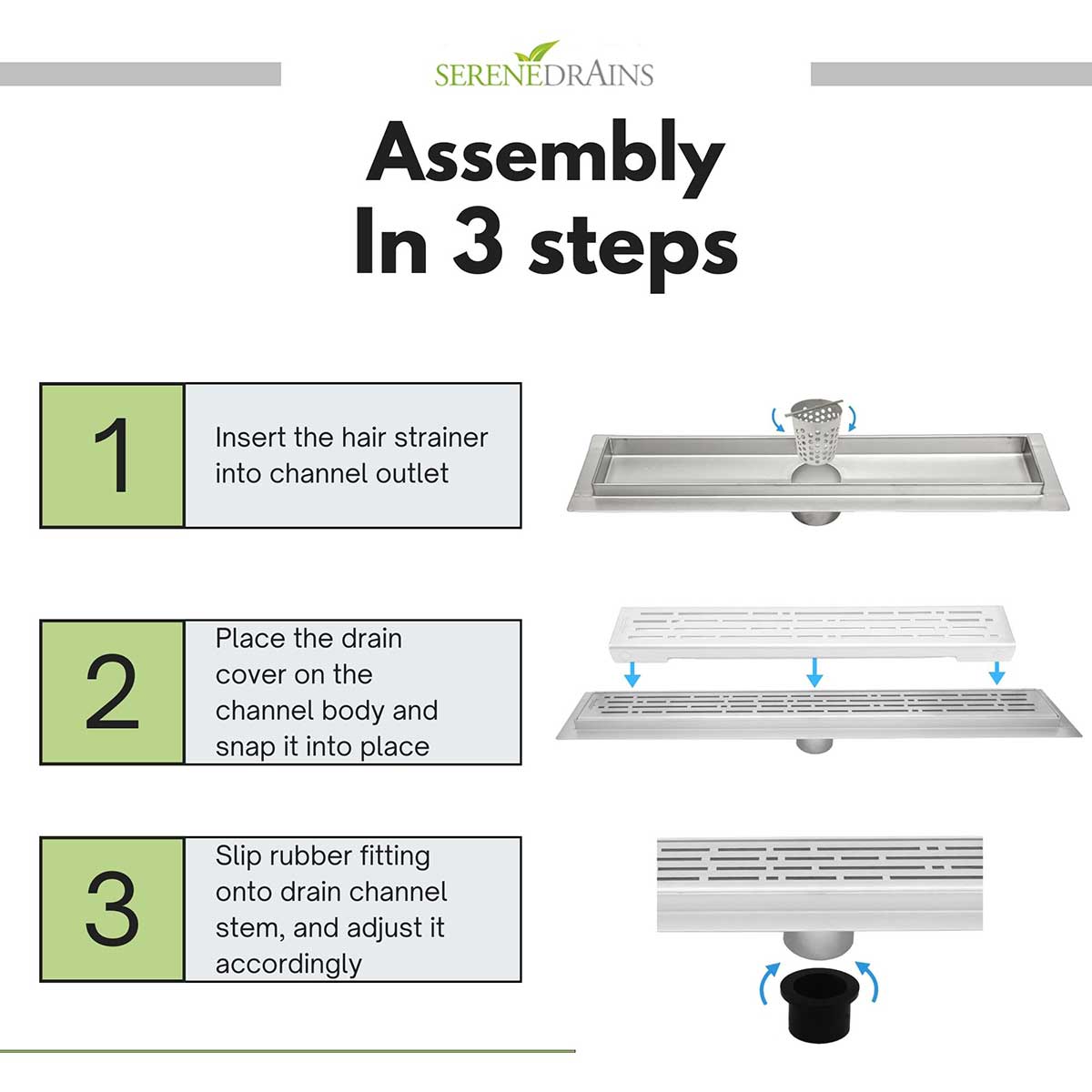

COMPLETE SET - Channel Body, Tile Insert Grate, Drain Rubber Fitting, Drain puller key, Waterproofing membrane sheet around the drain flange (not require but included)
Foot friendly grate with anti-slip nodules.
Optional: ABS or PVC or Cast Iron CPE Membrane Fitting, Clad Flexible Coupling, Stainless Steel Hair Trap
Square shape. It's easier to cut tile to a square drain than to cut, nip and grind it to fit a round one.
Superior Quality at an Affordable Price

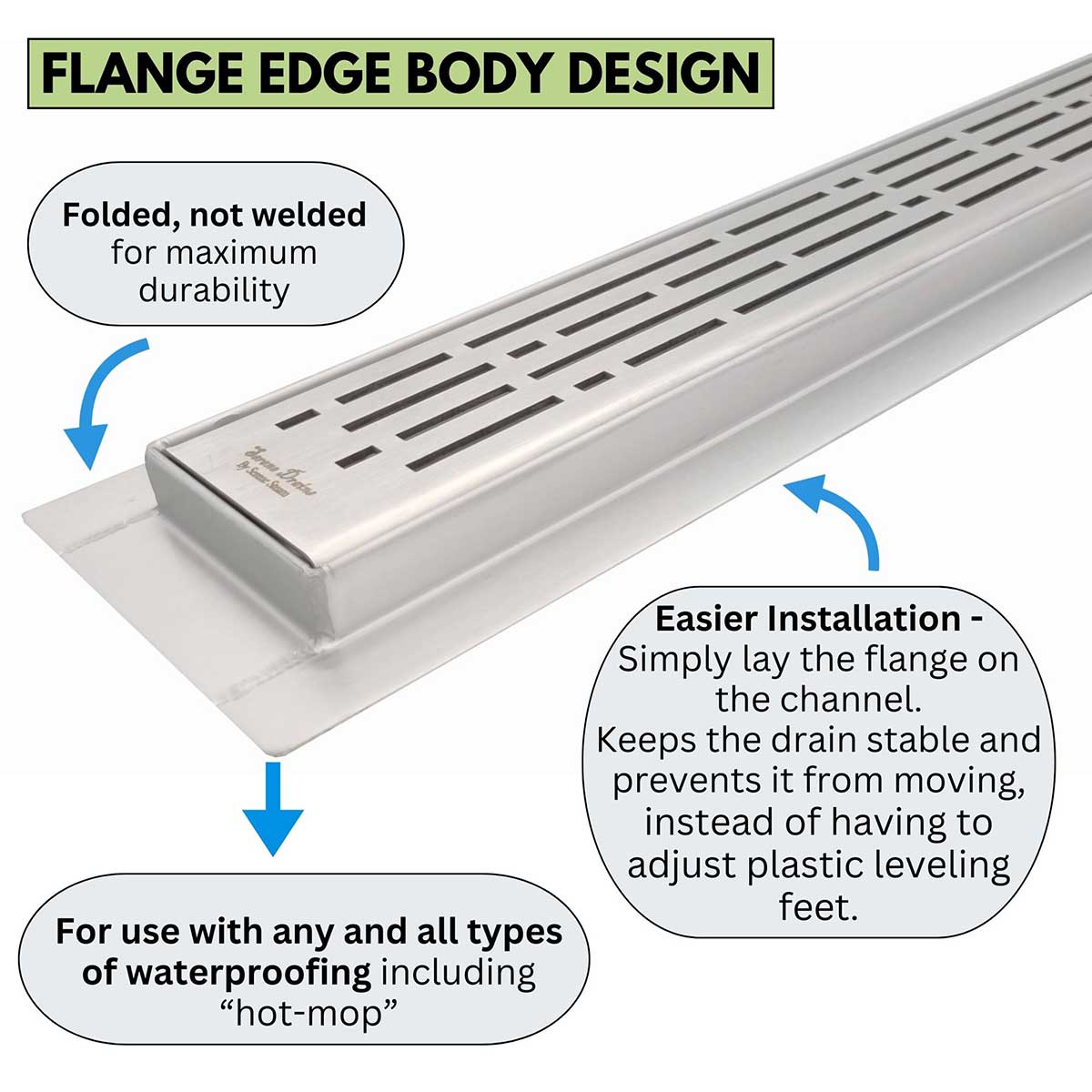

Flange Body Edge designed for use with any and all types of waterproofing, included and not limited to "hot-mop" painted or liquid membranes, Sheet Membrane, Vinyl waterproofing etc.
Length 16" (400mm), Intake 10.44 sq. in.
Length 24" (600mm), Intake 15.66 sq. in.
Length 30" (762mm), Intake 19.94 sq. in.
Length 35.43" (900mm), Intake 28.85 sq. in.
Length 39.37" (1000mm), Intake 31.36 sq. in.
Length 47.25" (1200mm), Intake 36.37 sq. in.
Length 59.05" (1500mm), Intake 44.74 sq. in.
- Pre-Slope Channel
- (5mm) 6 gauge Stainless Steel 304 Grate
- 2" diameter central vertical outlet
- Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
- Channel width: 2 3/4" (70 mm)
- Bodies are fully welded and leak tested prior to dispatch..
- Compatible with tiles up to 10mm depth (14mm lip)
- Stainless steel clad flexible coupling connects outlet to pipe system (optional)
- Optional accessories include plumbing connectors and debris strainer
- Stainless Steel 16 gauge 304 Grate
- Superior Quality
- Most Durable Finishes Available
- Easily Maintained. No Special Cleaning

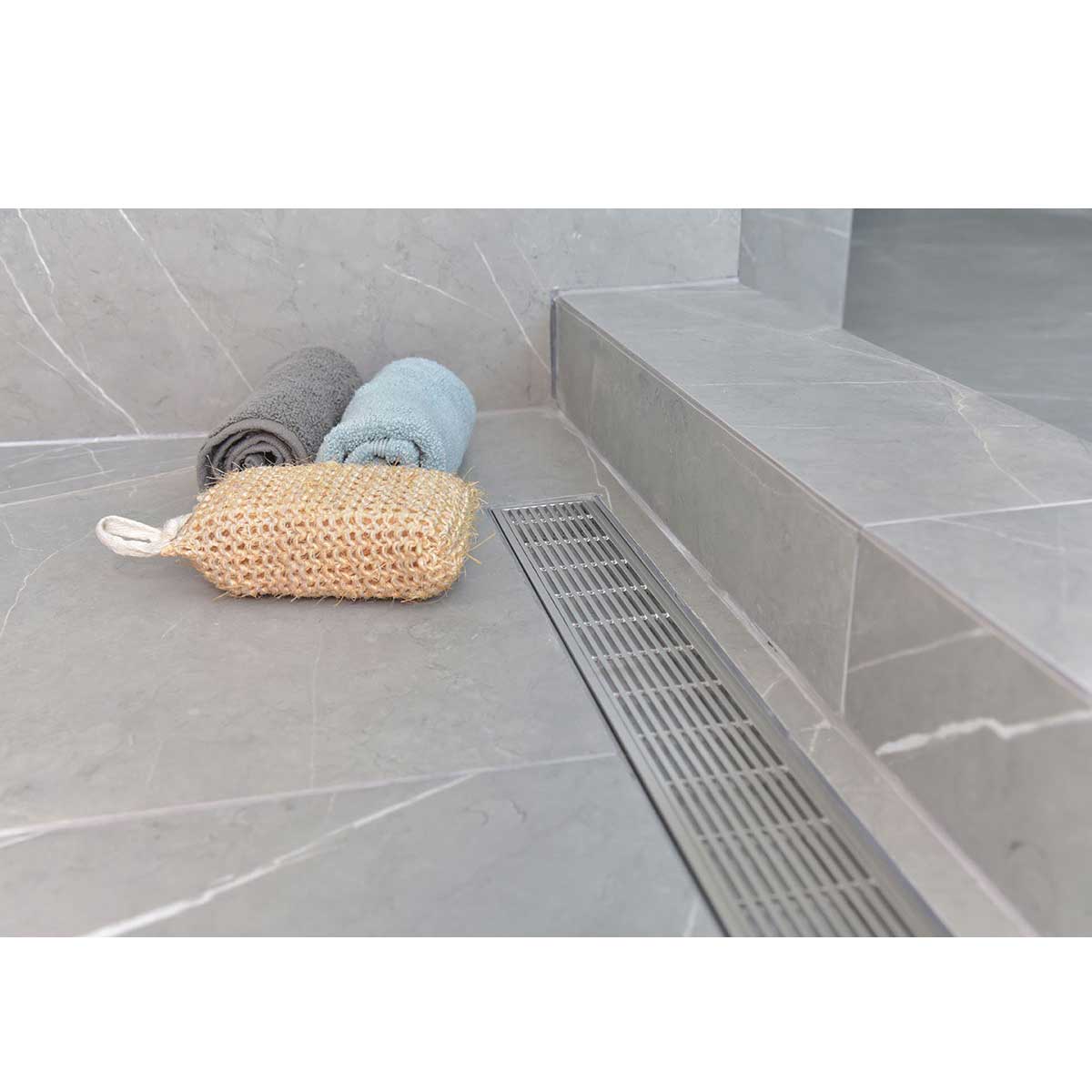

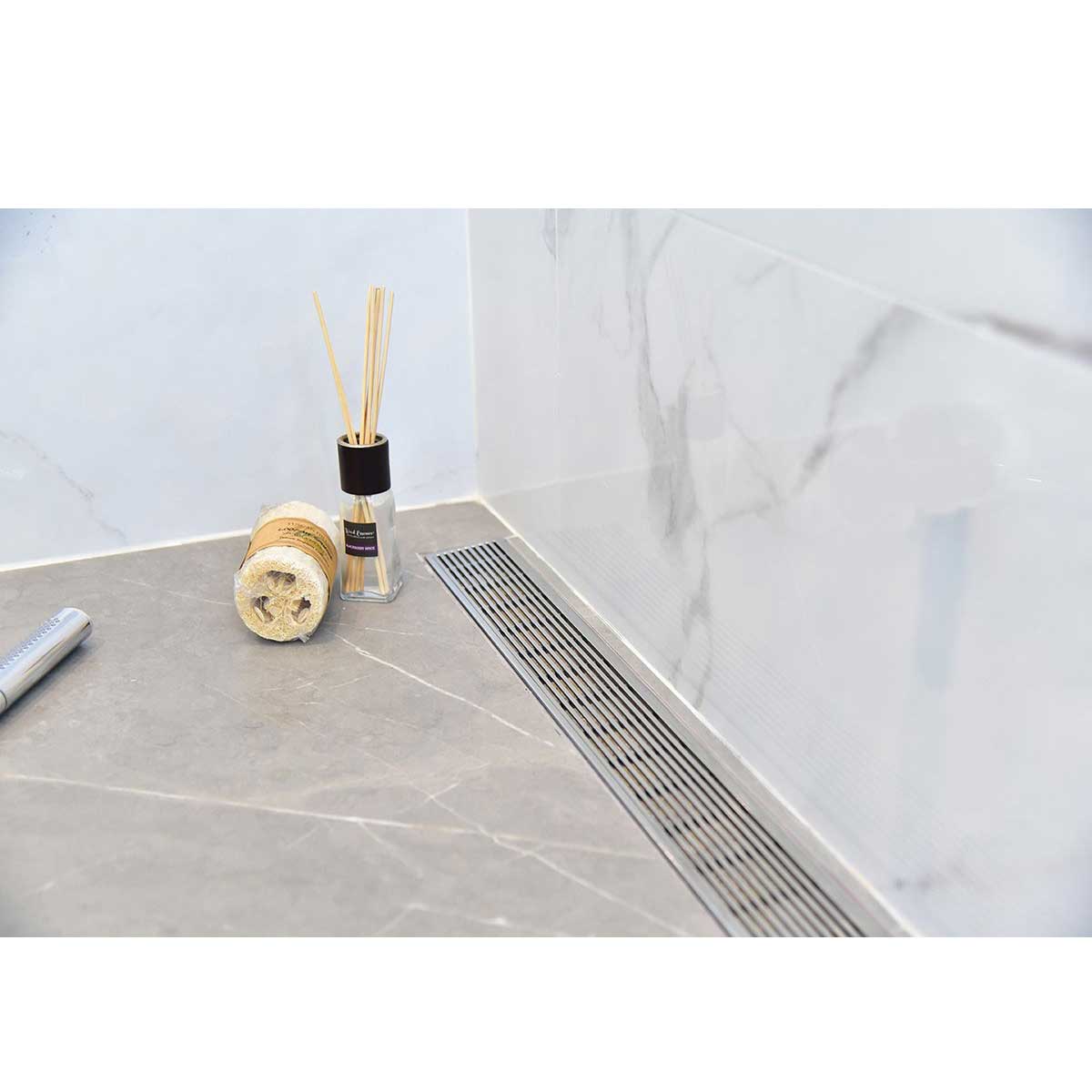

The SereneDrain Linear Wedge Style Linear Shower Drain with a 6 gauge Stainless Steel 304 Grate is a premium and reliable solution for your bathroom. Featuring a sleek and contemporary Linear Wedge Style pattern, this linear drain adds a touch of modern sophistication to your shower floor.
Crafted from high-quality stainless steel (304 grade), this linear shower drain offers exceptional durability and corrosion resistance. The 6 gauge Stainless Steel 304 Grate provides additional strength and sturdiness, ensuring long-term performance.
With its efficient water flow system, this linear drain effectively drains away excess water, keeping your shower area clean and safe. The Linear Wedge Style pattern enhances the visual appeal of your bathroom, creating a sleek and stylish aesthetic.
The SereneDrain Linear Wedge Style Linear Shower Drain with a 6 gauge Stainless Steel 304 Grate combines functionality with superior construction. It offers reliable water drainage while delivering a modern and visually appealing design. Elevate your shower experience with this durable and visually striking linear drain.
Superior Quality - Heavy Drain Grate - Minimal Grout Rim - Designer finishes
In stock - Ship Same Day
