Ready to Tile Shower pan System floor kit 36 x 601 review $548.10

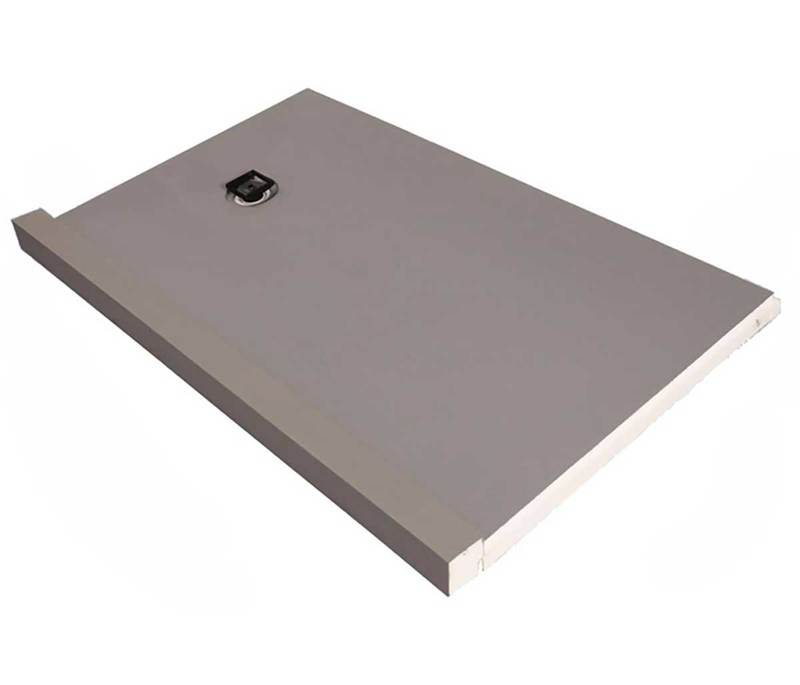

ProPan™ Ready to Tile Shower pan Base - Side Drain
Tub replacement - drain at 19" and 13" in from end
36" x 60" Floor Kit with drain and curb
Ready for any job… any situation. And ready to tile in minutes

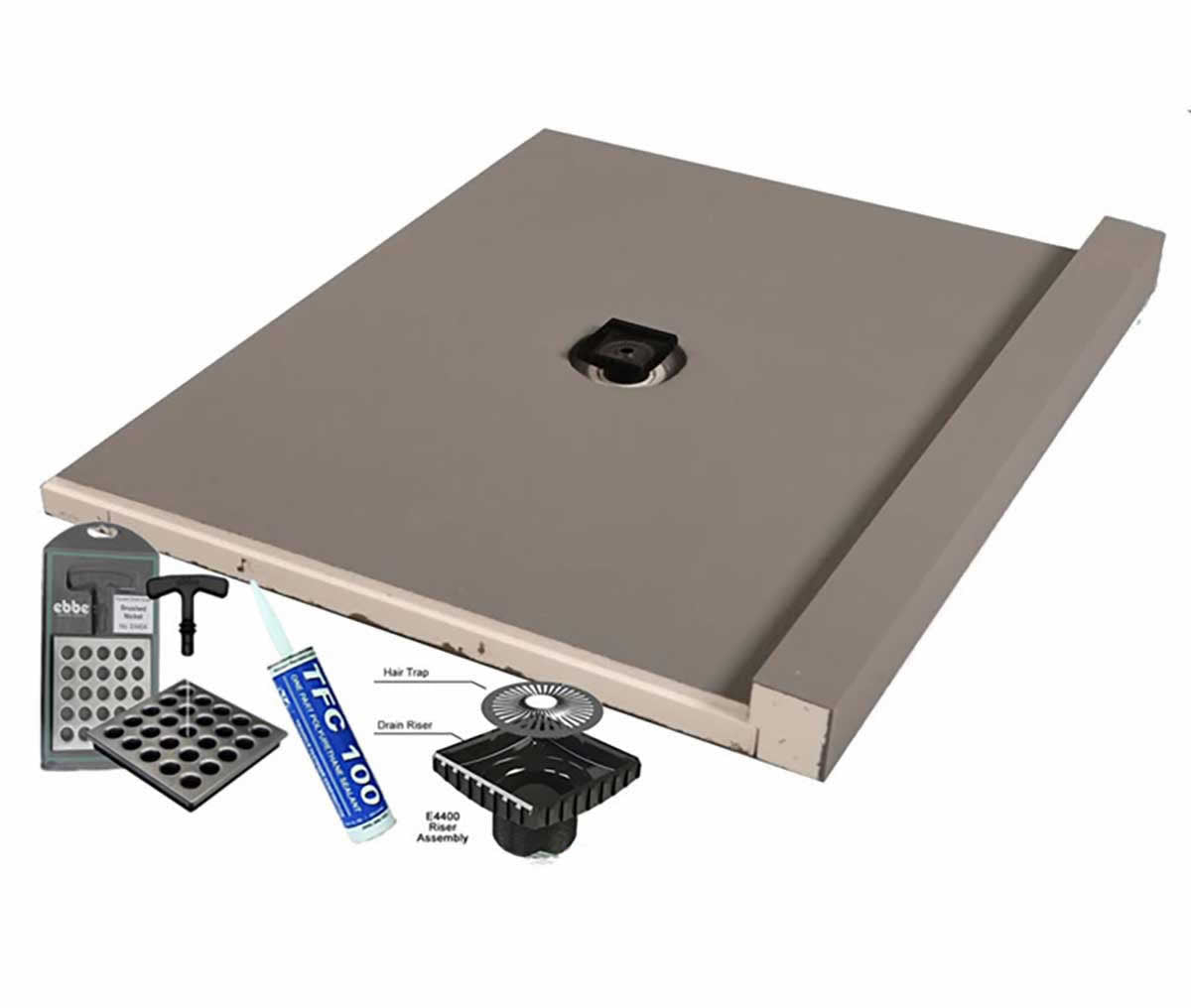

Pan Base Kit Includes:
• 1 ProPan Base 36" x 60.5" • 1 x 60" ProPan Curb • 1 Ebbe Square Drain • 1 x 10.3 oz Polyurethane Sealant • Ebbe Drain Hair Trap
listed by UPS/IAPMO to meet UPS PS 106-2010
Pro Pan™ is a professional grade shower pan that offers contractors the ability to modify, cut or even extend a shower pan on-site for unlimited residential and commercial applications.
ProPan™ is lightweight, completely waterproof and easy to install. Propan™ is designed to be used with ProPanel™ waterproof backerboard for a complete waterproof installation and system warranty.
ProPan™ adheres to industry standards with a 1/4" per foot slope to the drain and comes standard with an integrated drain assembly cemented into the base. Every ProPan™ comes standard with the Ebbe square drain and grate assembly.
ProPan™ can be cut down in size easily with a circular saw. The prefabricated 1/2" notch can be cut back into the pan base for proper installation of 1/2" ProPanel™ Backer Board. ProPan™ can also be extended with the ProPan™ 2'x4' extensions.

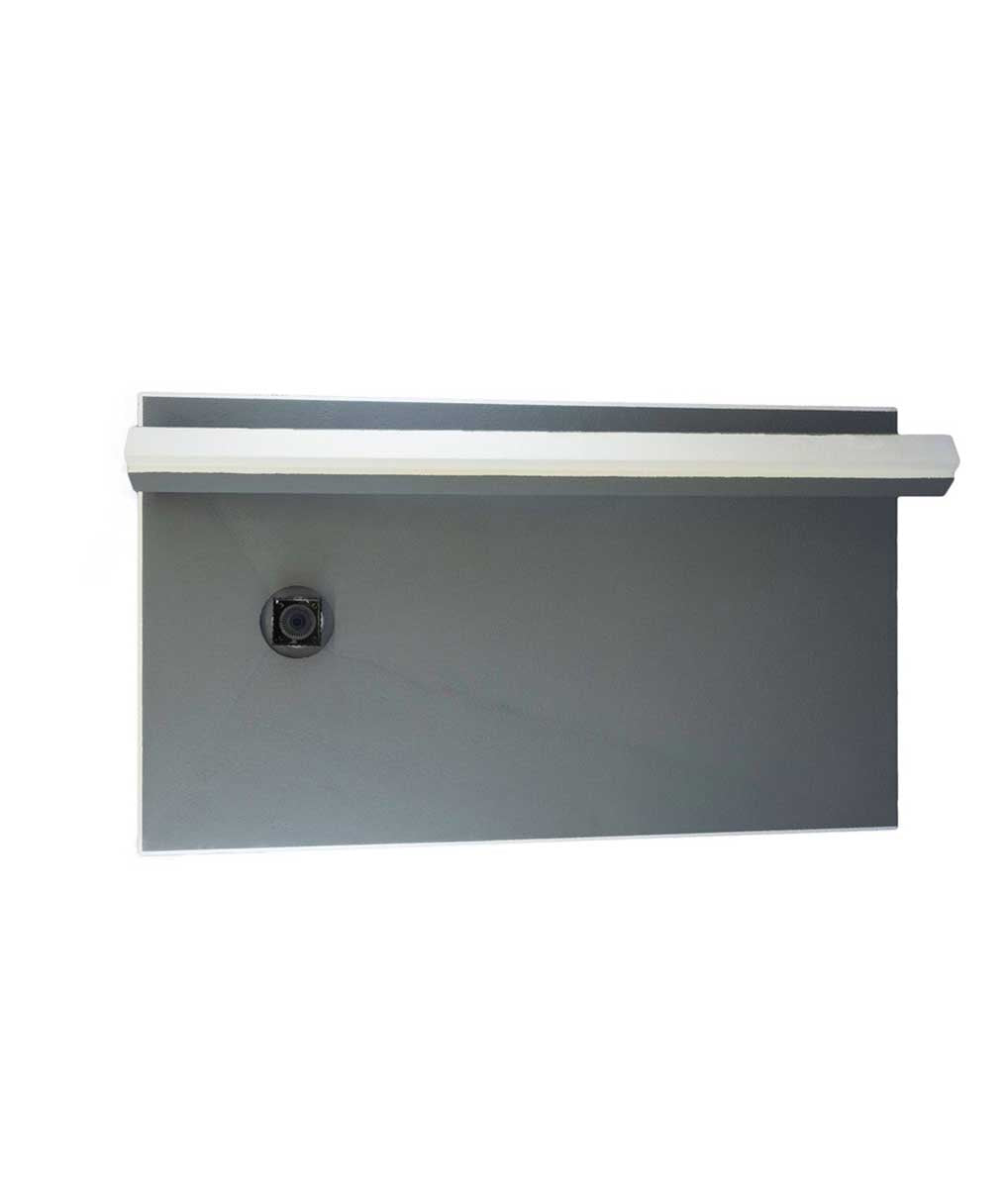

ProPan is available in 4' x 4' and 3' x 5' standard sizes. The 4, x 4, pan is centered drain located while the 3' x 5' pan drain is located at 18” and 6' for most tub replacement installations. Every ProPan comes with a curb attachment for those requiring a curb entry.
ProPan is made of high-density polystyrene insulation and reinforced with fiberglass mesh. It is engineered using a polymer cement coating that offers both 100% waterproof protection and added strength.
ProPan Shower Pans used in conjunction with ProPanel Lightweight Waterproof Backer Board and PreFormed Niches and Seats eliminate hours of on-site work. The ProPan Shower Pan can be installed in less than an hour instead of the traditional 2-3 days required for traditional mud bed installations. It eliminates pre-sloping, pan linears, mud beds, drain placement and waterproofing. The ProPan also offers superior resistance to mold.
Available with PVC or ABS
Use any thin-set setting material for installation
This Pro Pan Shower Pan base is available with any of our Ebbe Square Shower Drains with no extra charge, just specify which finish grade color you want
- Waterproof and rot resistant
- Light weight, easy to handle and install
- Time and labor savings
- Can be installed and tiled in the same day
- Drain assembly, and curb included
- No special training necessary
- Custom sizes can be ordered
- Sloped per industry standards
Made in the U.S.A
for more info contact us at email@example.comProPan Specification and installation procedure

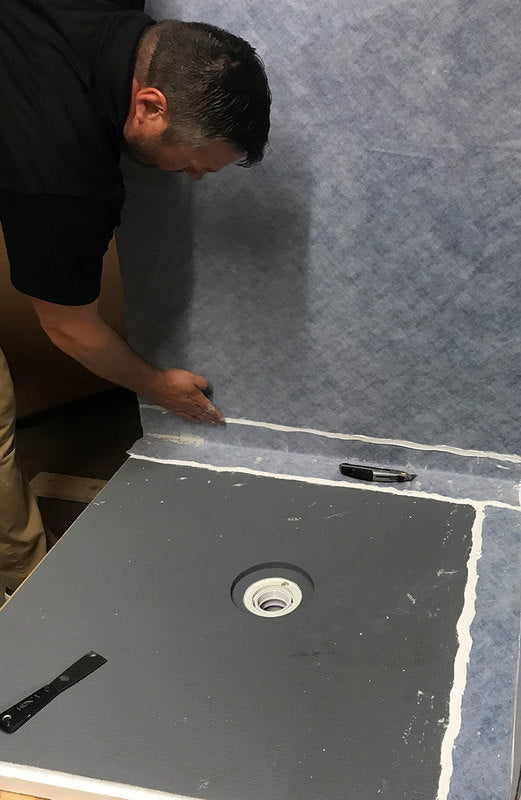

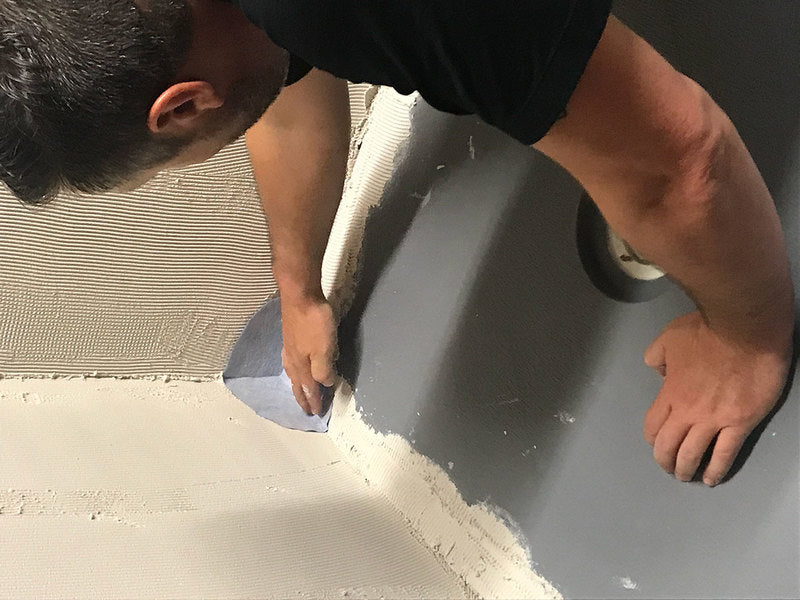

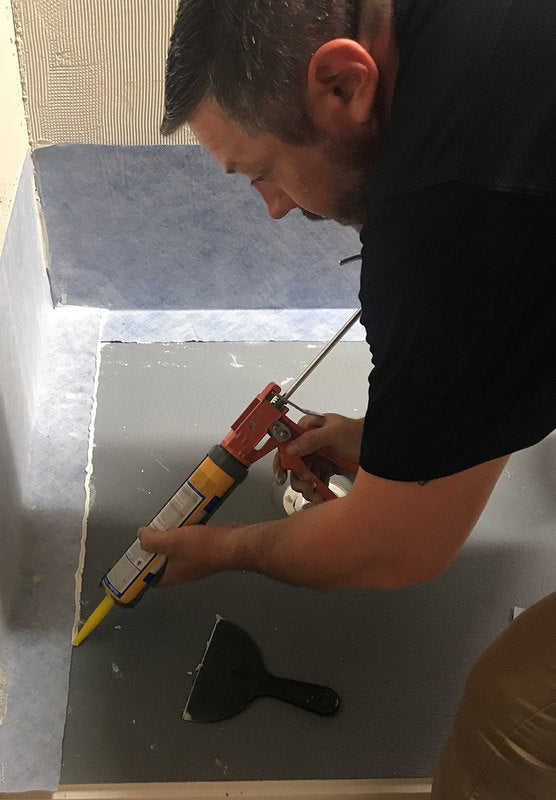

How to Install ProPan with ProPanel
