Raimondi Volpino Compact Vibrator and Tile Beater SVOLPINO

$695.00

Description

Raimondi Volpino Compact Vibrator and Tile Beater NEW

NEW Raimondi e-Fox vibrating for large format.

e-Fox 2-in-1 vibrating system for Large Format

Volpino vibrating system expels air from underneath the tile.

Essential is to eliminate the air that can remain below the slab once installed. If not removed, once the adhesive set, the air will create a vacuum that will make the slabs subject to breakage. For this we have developed the compact vibrator Volpino and the hand tile beater with rubber bottom

  • Designed to vibrate surface of large format tiles and help any air pocket escaping from underneath the slab, ensure a full bound to the mud bed, and prevent potential cracks.

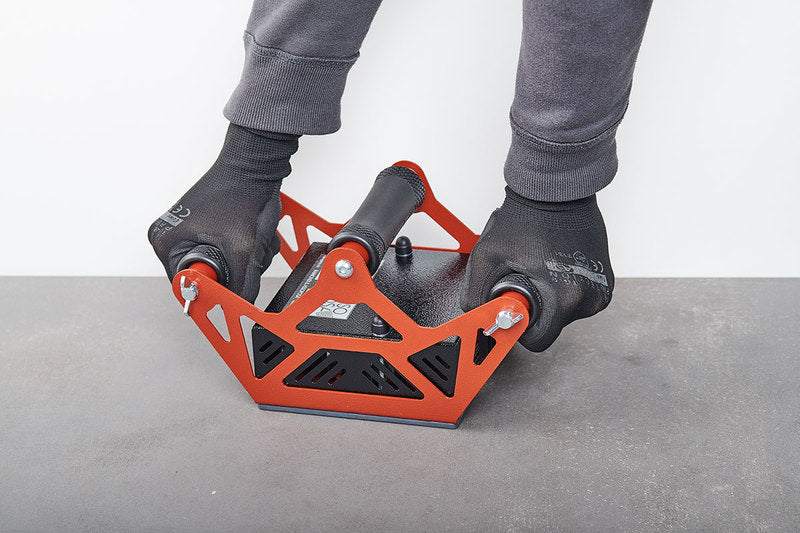

  • Compact design, lightweight (6 Kg – 13.2 lbs) and easy to handle, it comes with 3 ergonomic handles which allow a comfortable and secure grip during both usages on floors and walls.
  • The constant and uniformly applied vibration does not damage the slab even in the most risky situation (for instance, when large holes and/or cuts have been previously performed on the slab).
  • High vibration frequency (motor Rpm: 3000 at 50 Hz; 3600 at 60 Hz).
  • Vibration level can be adjusted via mechanical removal of eccentrics.
  • Single speed.

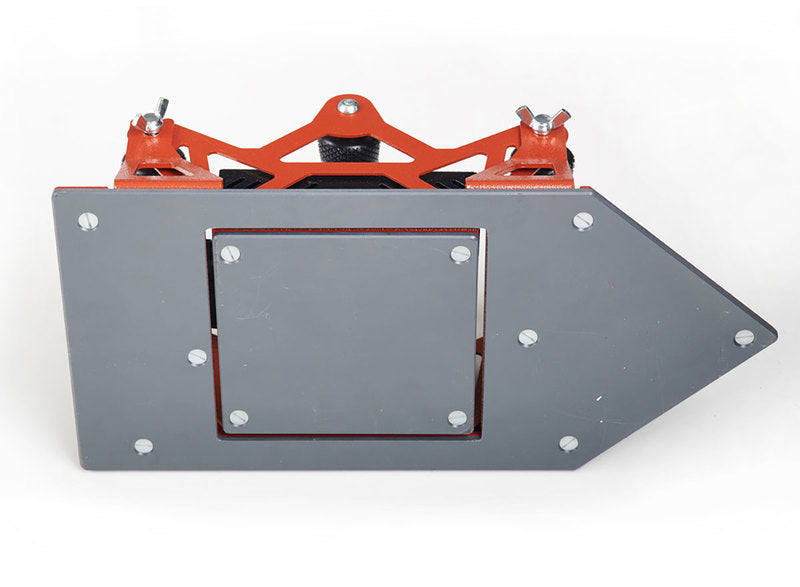

  • Stain-free-rubber plate designed to prevent stain and damage to the slab. Replaceable rectangular plate but with triangular point to easily reach the corners.
  • Motor power: 25 Watt.

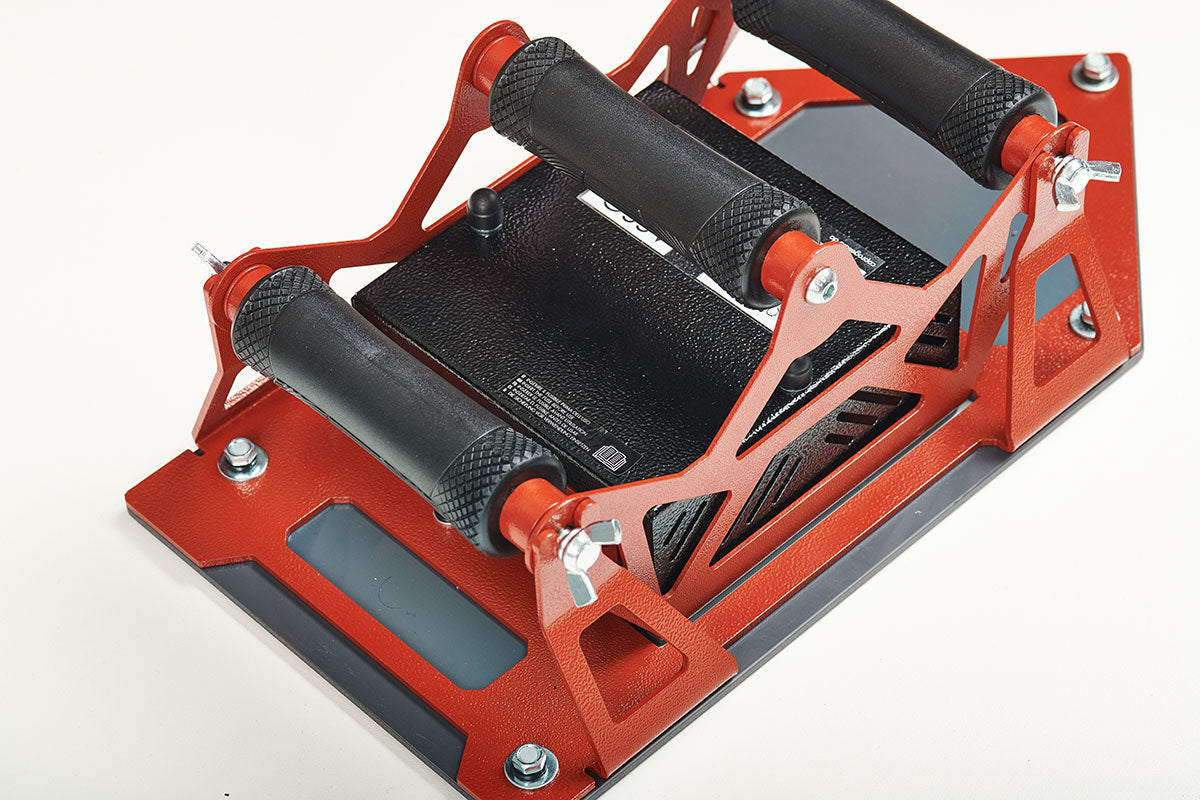

e-FOX is the new pro-grade battery-operated vibrator designed to obtain perfect adhesive coverage when installing large format tiles. The vibration facilitates expelling air from underneath the slab (so, to avoid air pockets) while optimizing distribution of the adhesive.

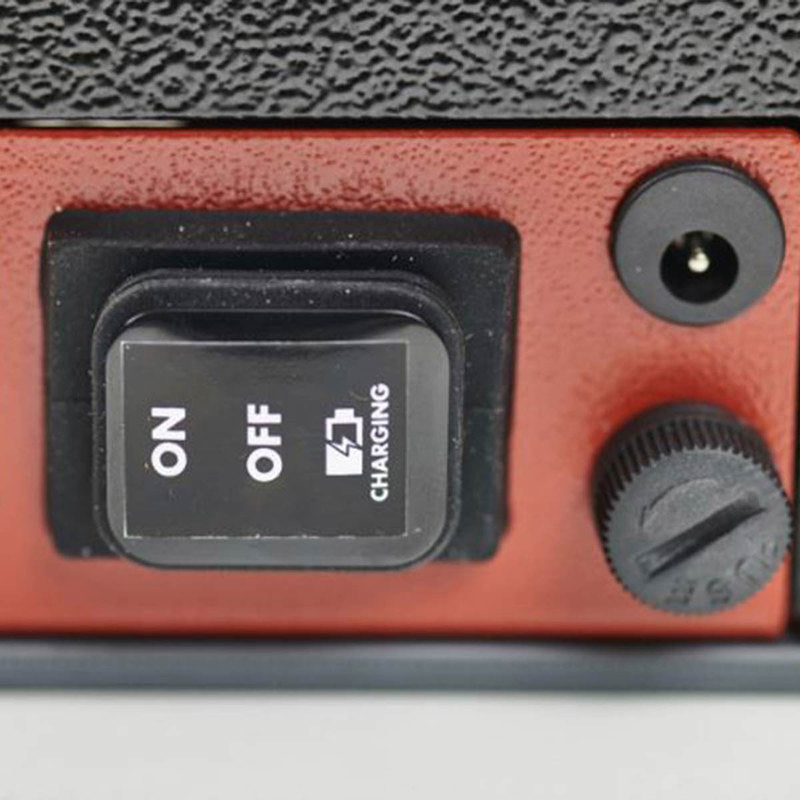

BATTERY POWERED no more cables that get in the way. The battery provides abundant autonomy: within 1,600 - 2,100 sq. ft. vibrated surface on a single charge. The battery has a very long life.

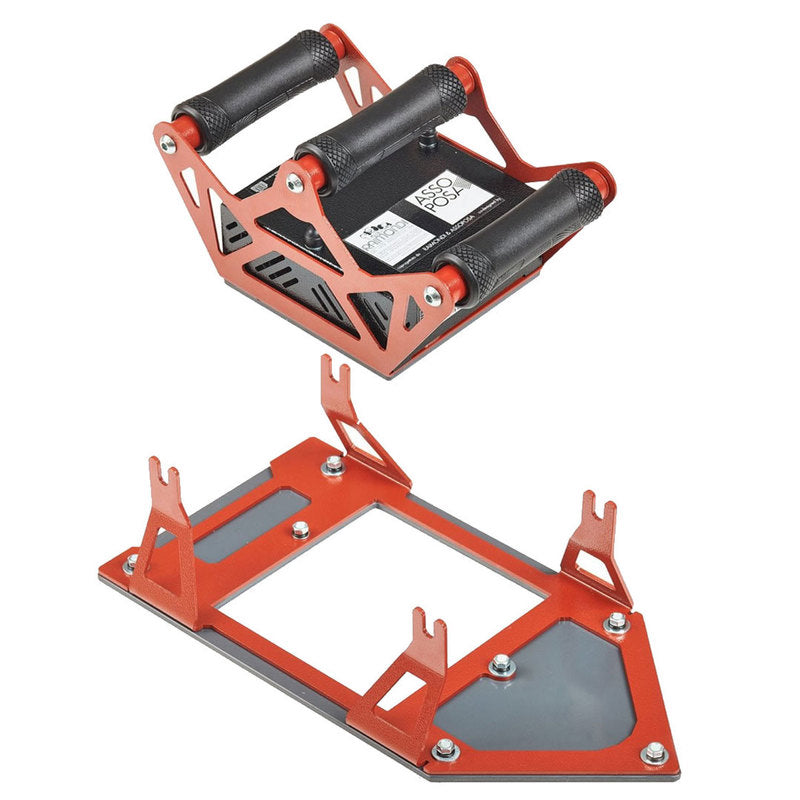

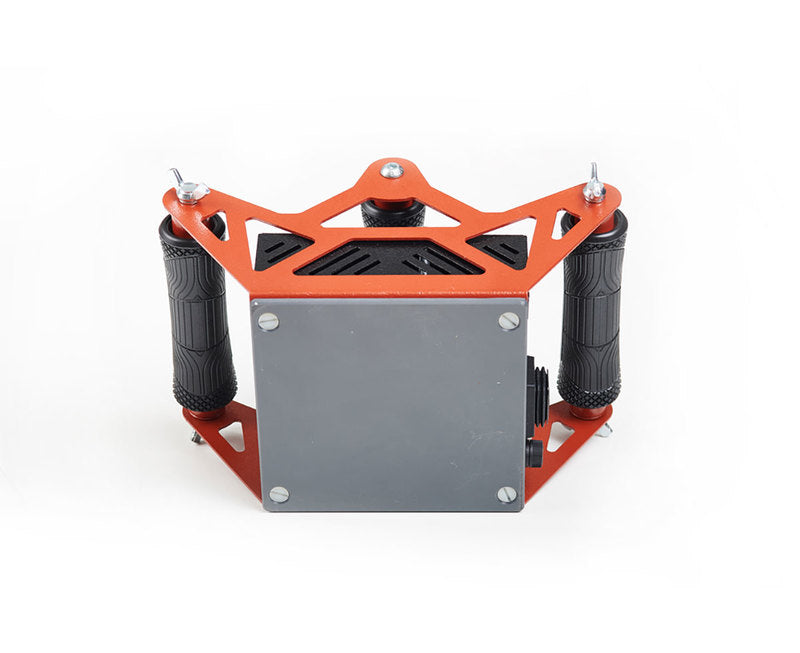

2-IN-1 PRODUCTS choose the dimension of the vibrating area: 8 1/4”x 16 1/8” or 6”x6”. The bigger V-point plate is ideal for vibrating large format slabs; the smaller perfect even for small surfaces and / or small tiles (for example steps, planks, columns).

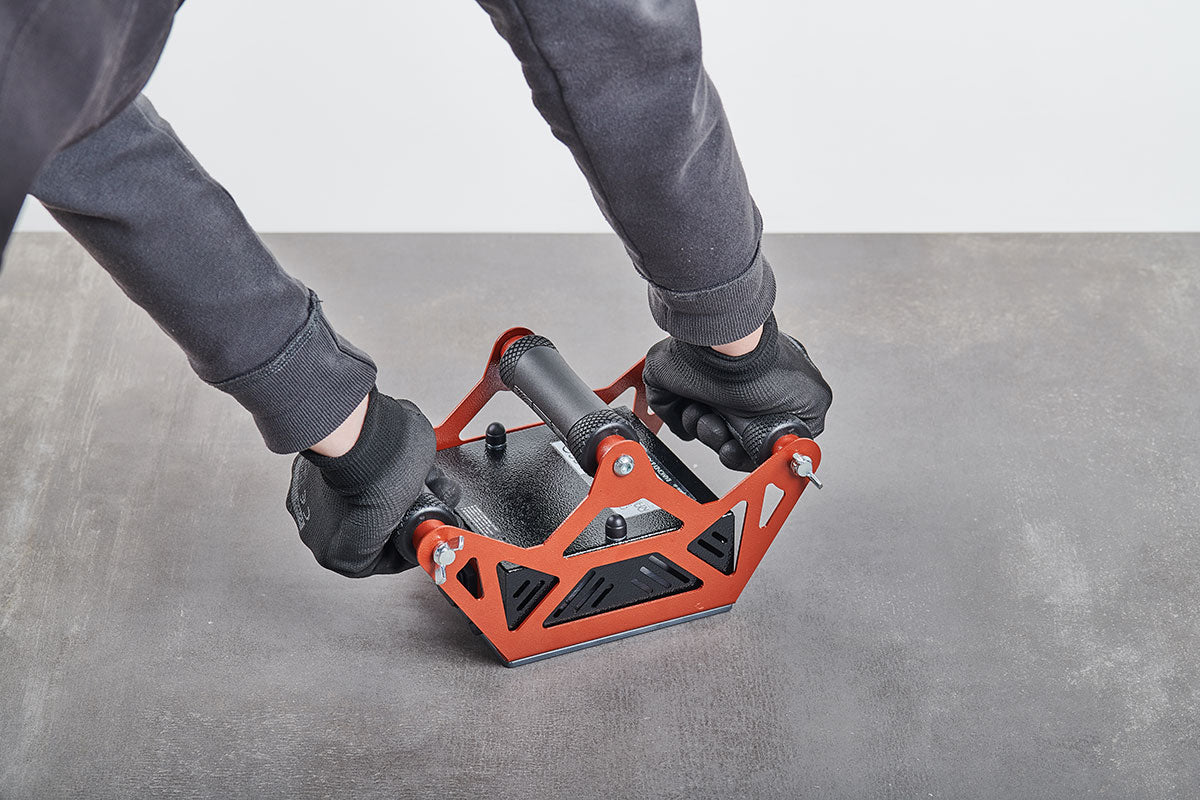

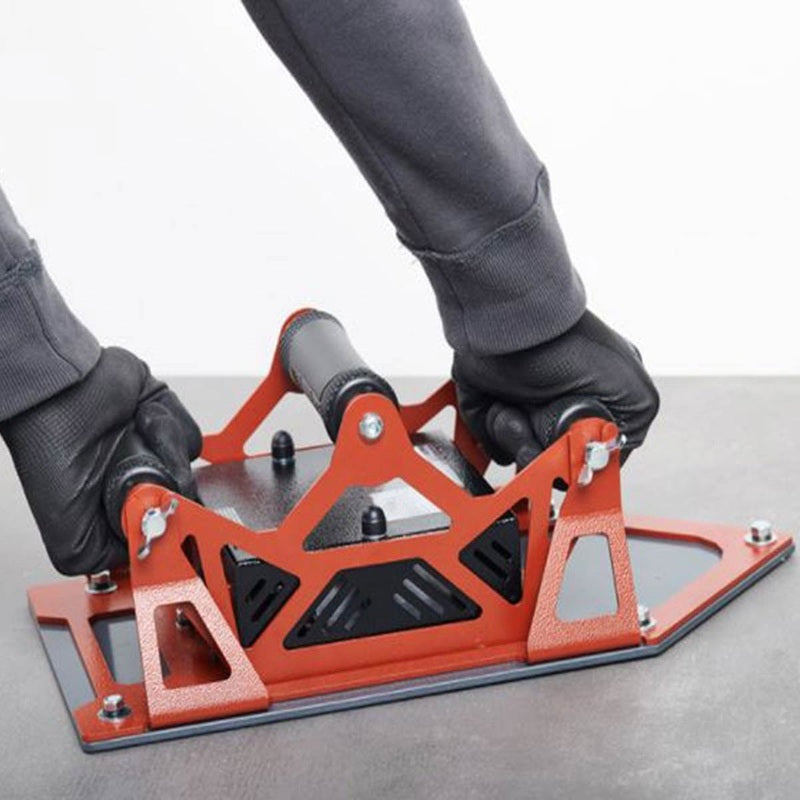

EASY TO HANDLE & LIGHTWEIGHT Being lightweight and cordless, having three handles (two externals for two-hand use and one central for one-hand use) and the option to choose within two vibrating areas, the e-FOX excels in terms of manageability while guaranteeing the highest performances.

Specifications

Motor Single Phase - 50/60 Hz
Charger Voltage 110 V (Battery Powered 12 Volt)
Power 25 W
High Vibration frequency (motor Rpm: 3000 at 50 Hz; 3600 at 60 Hz)
Vibration Surface 8 1/4”x 16 1/8” or 6”x6” (with triangle tip for corners)
Weight 19 lbs
