The Raimondi MOTOKOMPASS LTMOTOKOMPAS is a specialized device for creating circular cut-outs, rounded corners, and shaped edges on large-format tile and slabs. It can be used to create rounded furnishing elements and supports both half/bullnose and 45° miter (jolly) profiles.

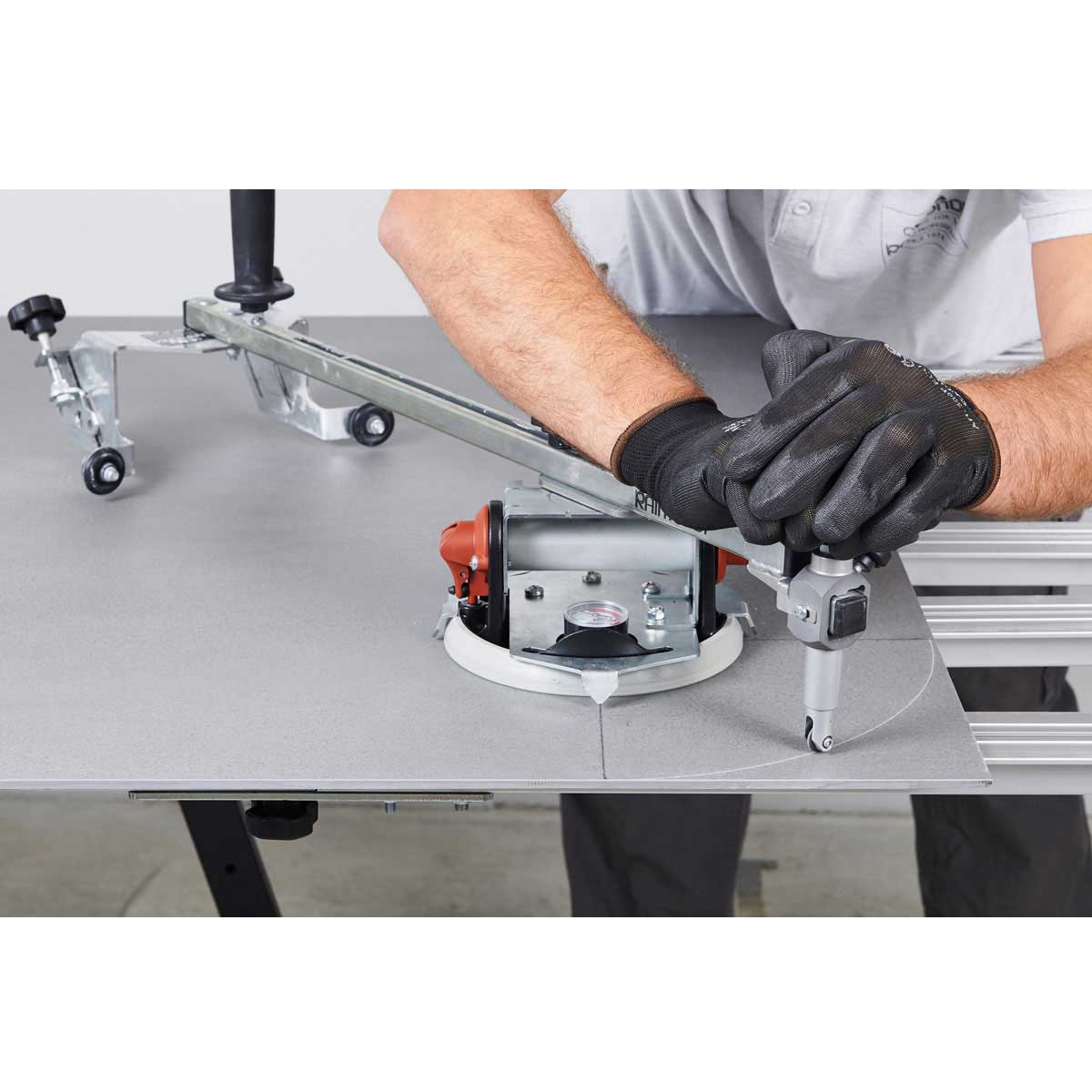

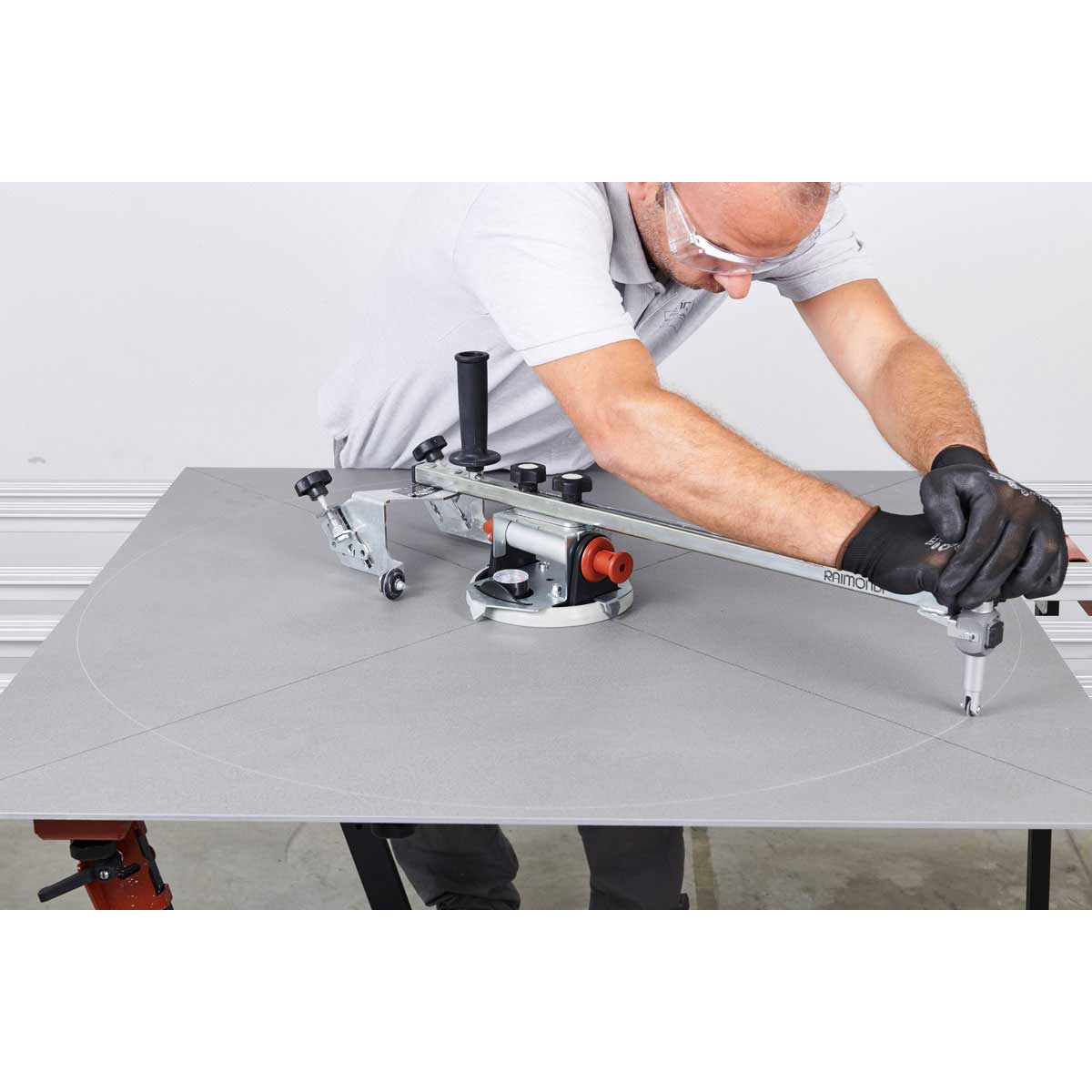

MOTOKOMPASS uses a scoring system similar to the Raimondi KOMPASS KOMP 50 and can be used to score tile before completing the circular edge. The device can create diameters from 12" (30 cm) to 40" (100 cm), providing flexibility for different tile and slab shaping applications.

Features

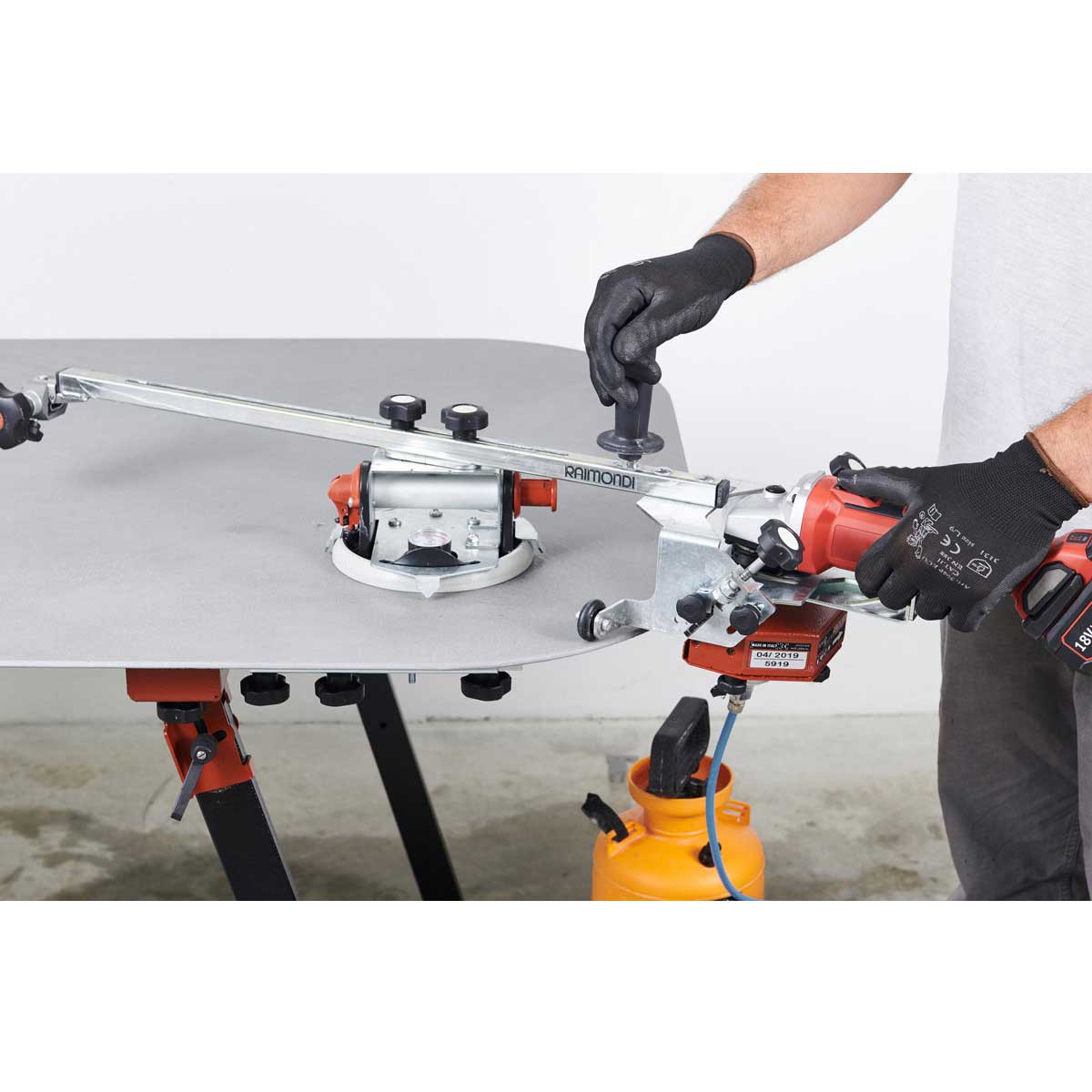

• Designed to create circular cut-outs and rounded corners.
• Possible diameters from 12" (30 cm) to 40" (100 cm).

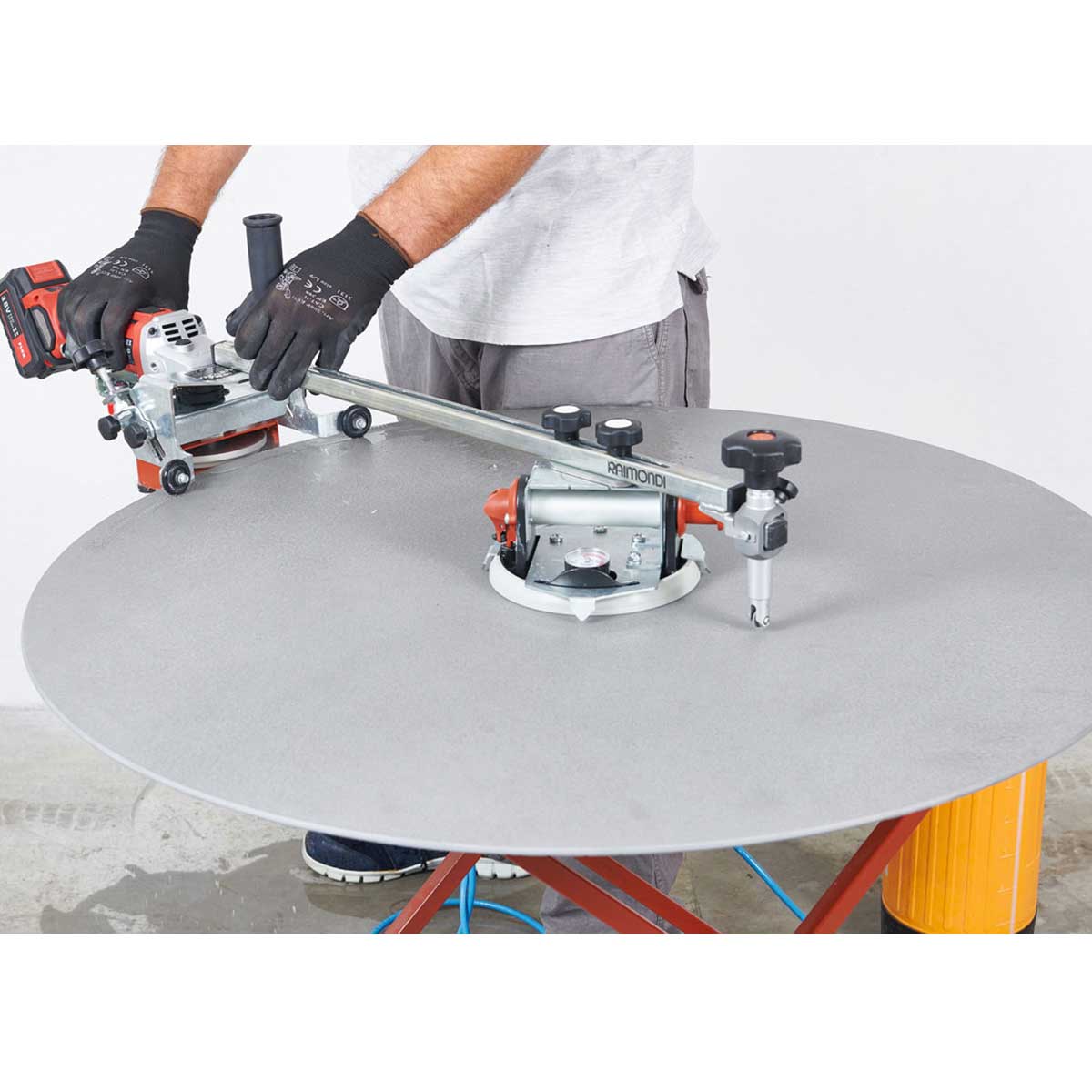

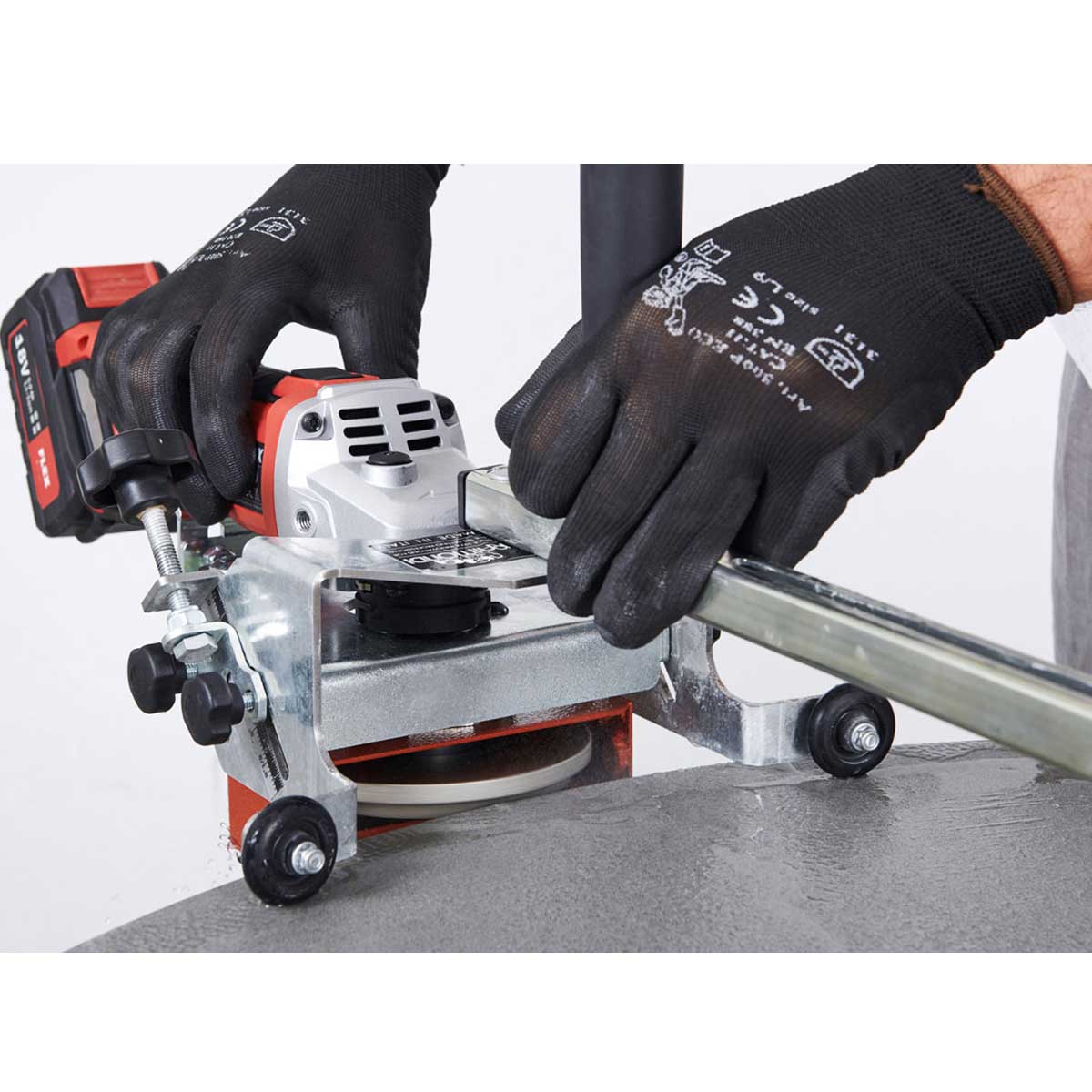

• Performs half/bullnose and 45° miter (jolly) profiles.
• Scores tile using a diamond scoring wheel similar to the LTKOMP50.
• Can be used to score tile and finish the circular edge.
• Can be used dry with a dust extractor or with water using the appropriate wet-cut kit.
• Suitable for almost all angle grinders with power between 600 and 1100W.
• Available for angle grinders with M14 arbor attachment and 5/8"-11 arbor attachment.
• Includes a vacuum pump suction cup with vacuum gauge for use on textured surfaces.
• Includes a 16 mm diamond scoring wheel.
• Includes a housing unit for an angle grinder for shaping edges.
• Includes cutting-off plier for 3 to 6 mm thick tiles.
• Includes use and maintenance manual.

Profile Capabilities

• Half/Bullnose: For slabs and tiles from 5 mm to 12 mm thick. Available radii are 6 mm, 10 mm, and 12 mm.
• 45° Bevel (Jolly): For slabs and tiles from 3 mm to 12 mm thick.

Cutting and Finishing

After shaping the edge, finishing and polishing can be performed using an angle grinder freehand with diamond pads. The recommended maximum speed for this finishing operation is 1400 rpm.

Dry or Wet Use

The MOTOKOMPASS can be used dry with a dust extractor or with water when equipped with the appropriate wet-cut kit, Art. 433PWW A. Use proper GFCI protection around water.

Angle Grinder Compatibility

• Suitable for almost all angle grinders with power between 600 and 1100W.
• M14 arbor: Art. 433KOMOHR
• 5/8"-11 arbor: Art. 433KOMOHUS

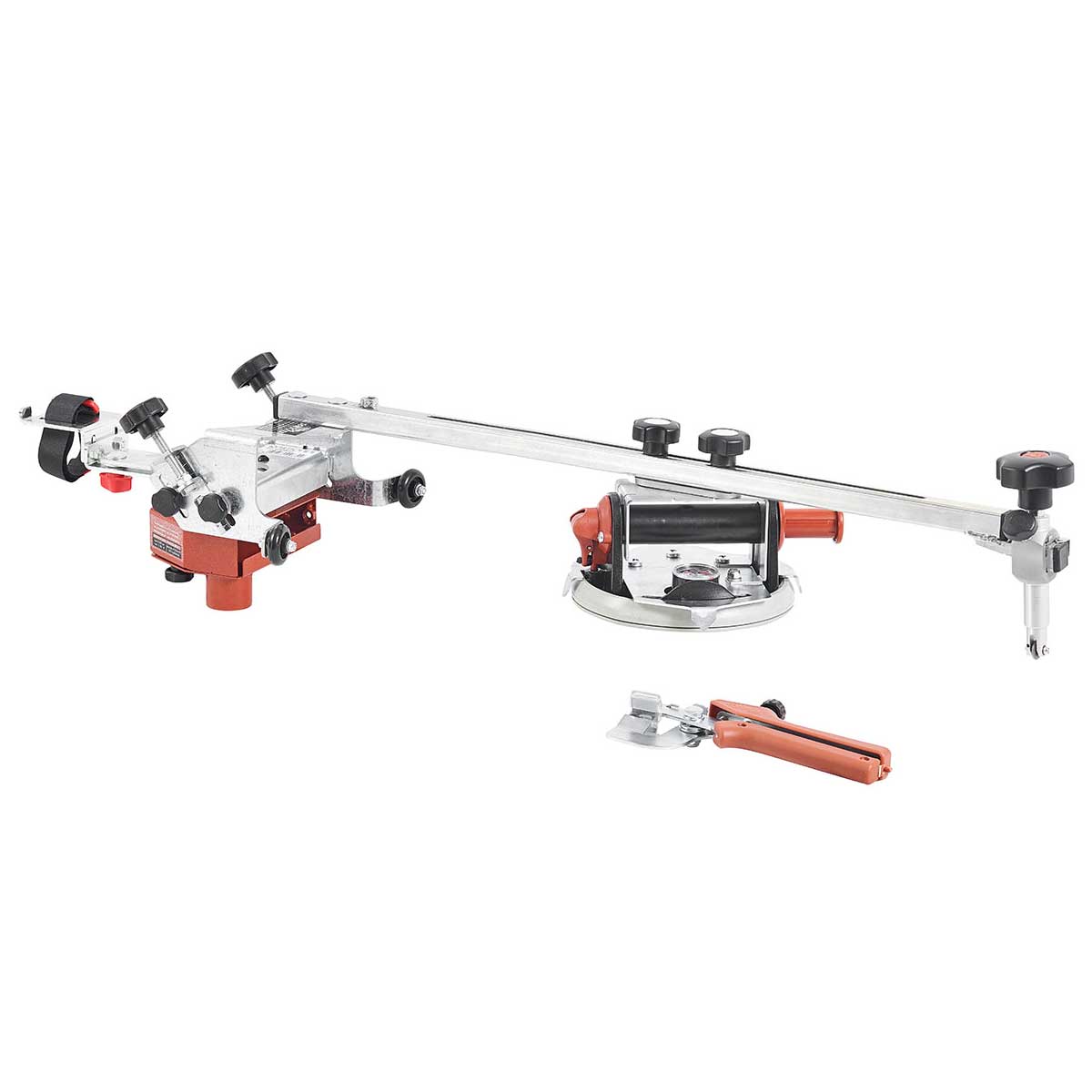

What's Included

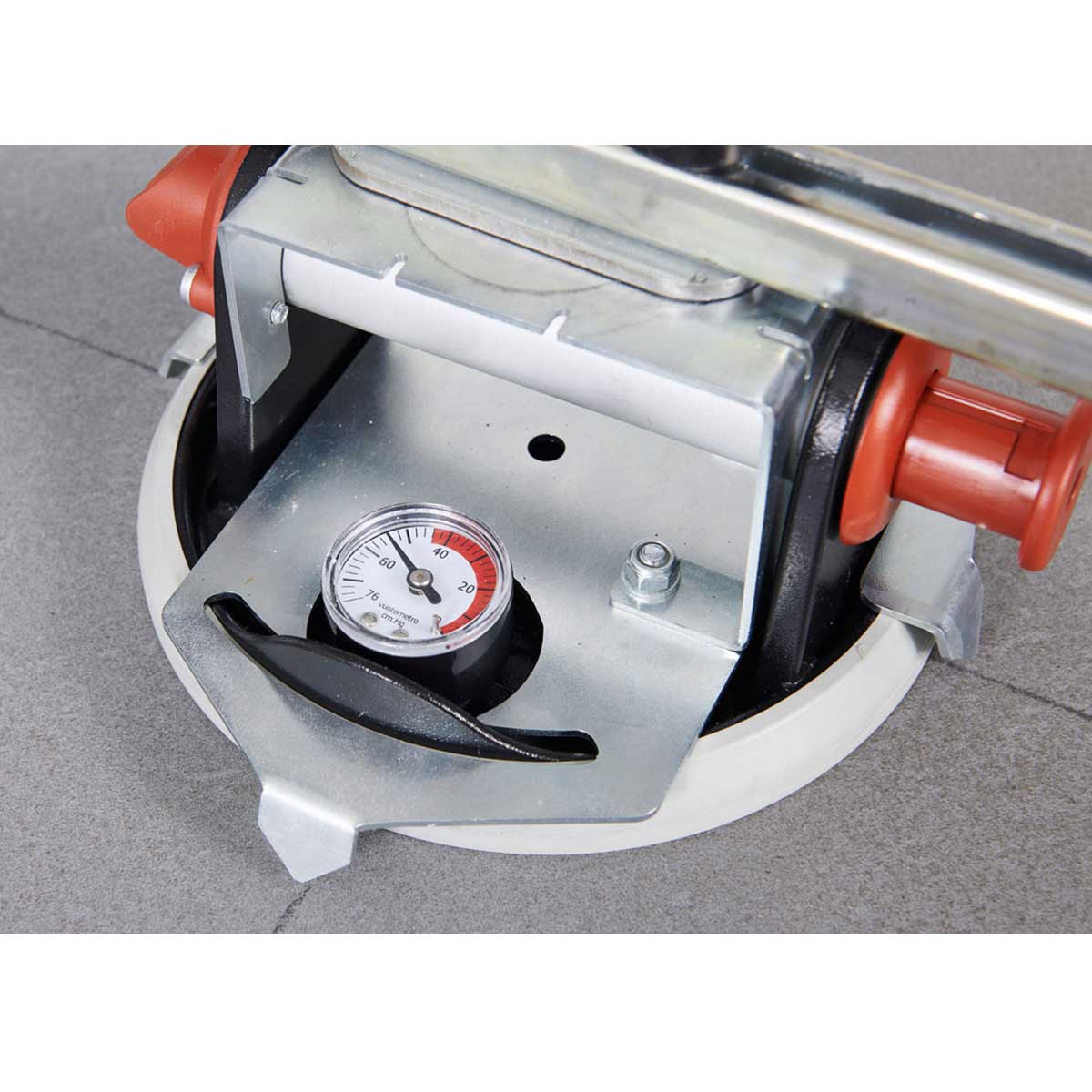

• RV 175 vacuum pump suction cup with vacuum gauge for use on textured surfaces.
• Diamond scoring device with 16 mm diamond wheel.
• Housing unit for angle grinder for shaping edges.
• Cutting-off plier for 3 to 6 mm thick tiles.
• Use and maintenance manual.

Important: The angle grinder and diamond finishing tools are not included and must be purchased separately.

Applications

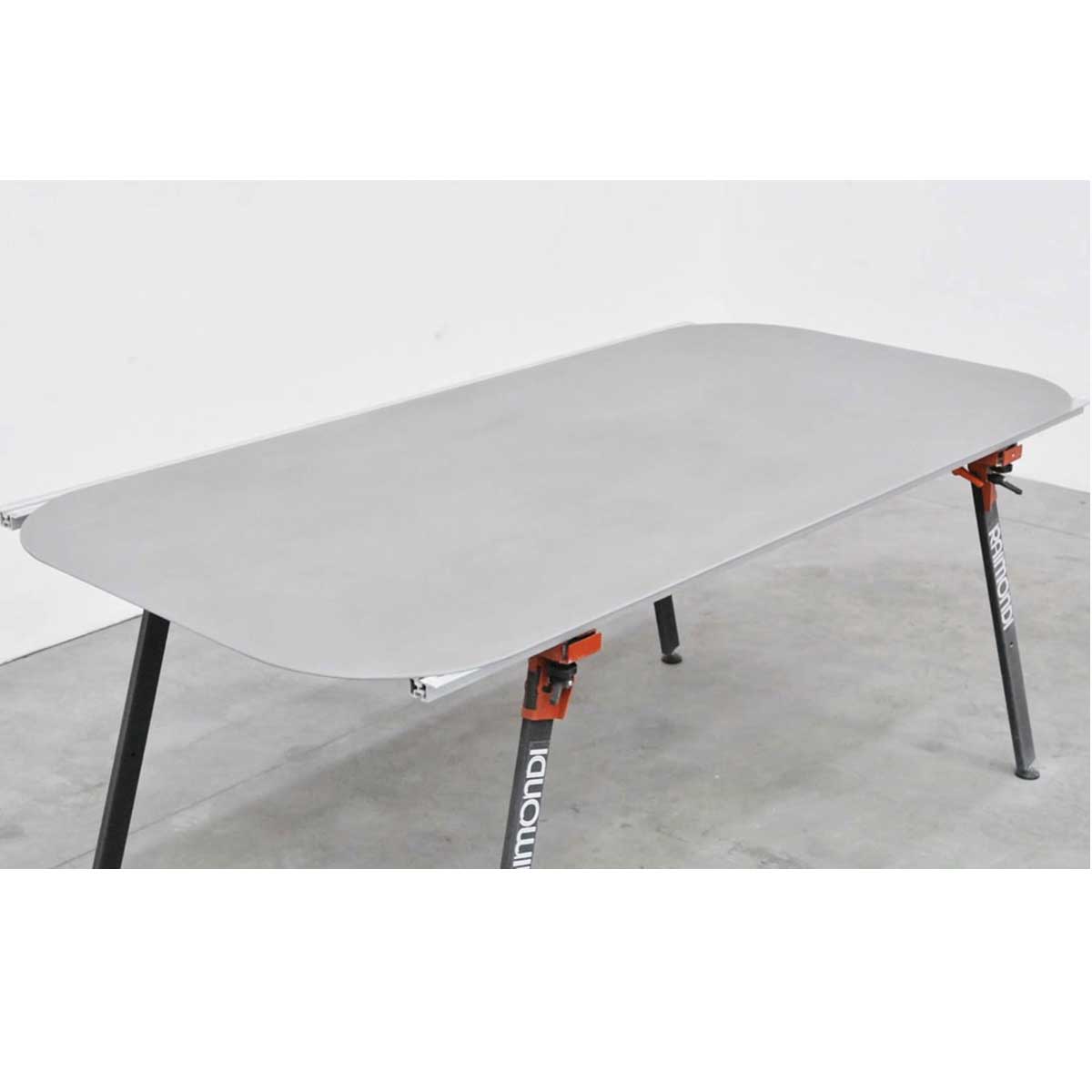

• Circular tile and slab cut-outs
• Rounded slab corners
• Rounded furnishing elements
• Half/bullnose edge profiles
• 45° miter (jolly) profiles
• Large-format tile shaping
• Large-format slab edge shaping

Specifications

• Model: LTMOTOKOMPAS
• Diameter Range: 12" (30 cm) to 40" (100 cm)
• Half/Bullnose Thickness: 5 mm to 12 mm
• Available Bullnose Radii: 6 mm, 10 mm, 12 mm
• 45° Bevel Thickness: 3 mm to 12 mm
• Diamond Scoring Wheel: 16 mm
• Compatible Angle Grinder Power: 600 to 1100W
• Dry Use: Yes, with dust extractor
• Wet Use: Yes, with appropriate wet-cut kit
