Raimondi Box device to perform 45 without rail - TCLF45DB



Raimondi Box device to perform 45 without rail - TCLF45DB

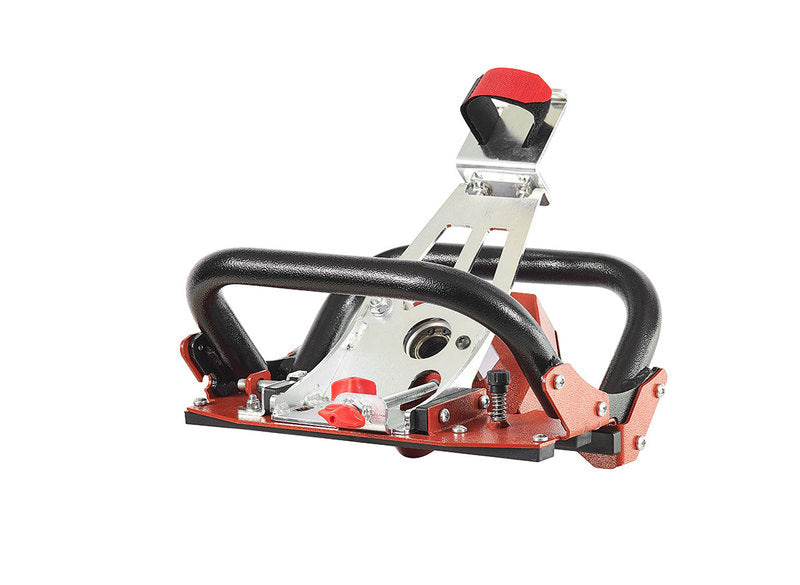

Box device to perform 45 without rail (grinder and blade not included)

Device to perform 45° miter cut high quality finishing (“jolly”) directly on construction site (actual miter angle: 47°).

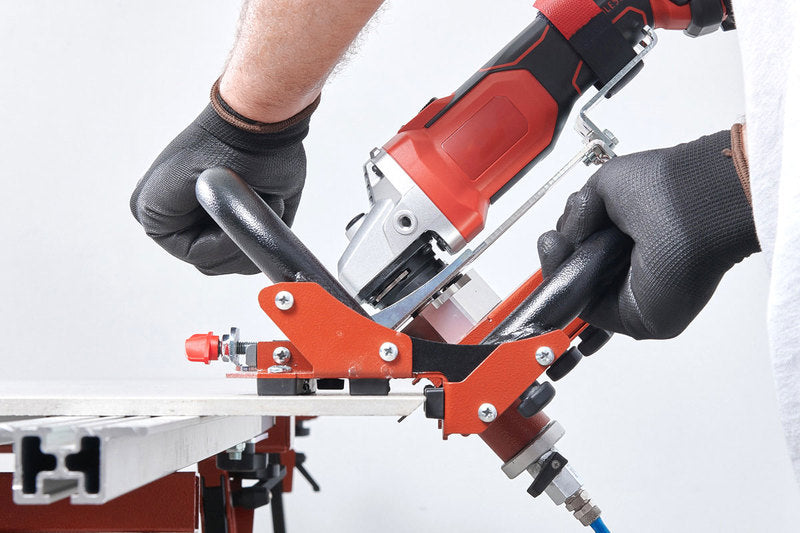

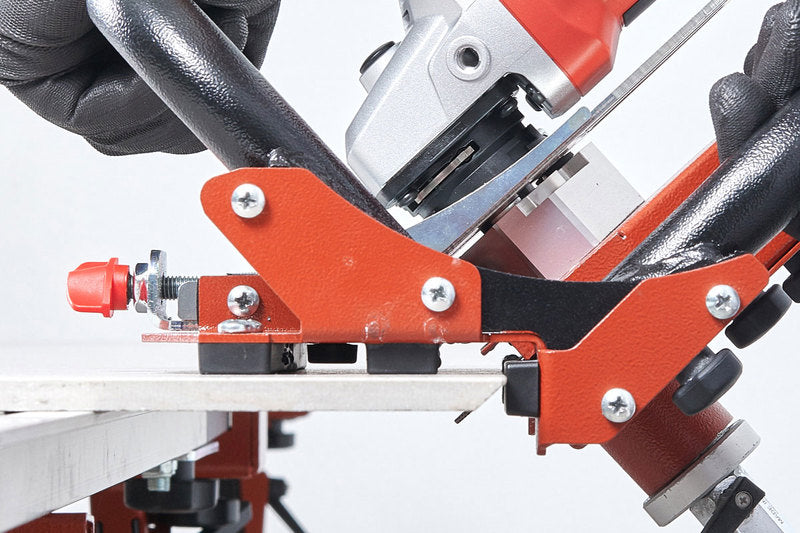

It works leaning and sliding on the edge of the tile (or slab): this guarantees a fast and precise work execution and allows to work without any limit on length.

The anti-scratch plastic slides ensure optimal smoothness on the slab/tile.

Maximum slab/tile thickness: 16 mm (0.63”) with Ø115 mm (4 1/2”) blade; 20 mm (0.79”) with Ø125 mm (5”) blade.

The two handles are designed to easily allow the necessary pressure during the entire length of the miter cut (entrance, slab side, exit) to guarantee both optimal results and maximum ergonomics.

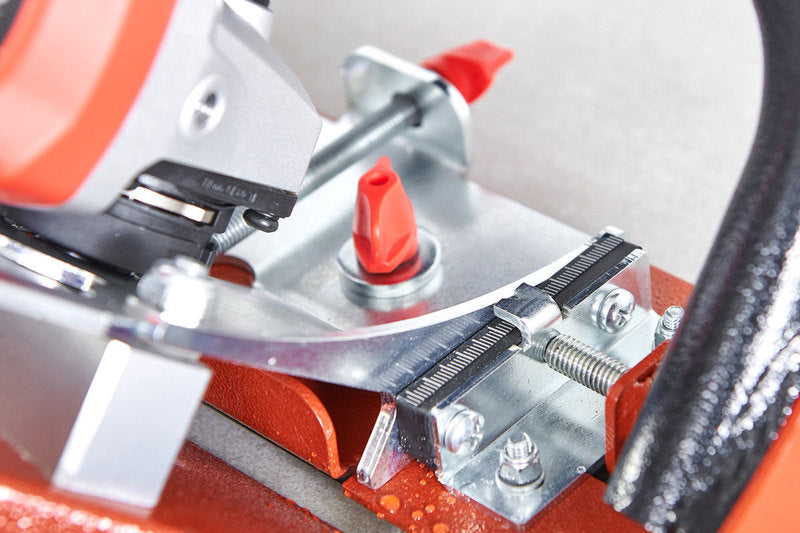

Cutting depth adjustment: by adjusting the dedicated knobs, it is possible to determine the amount of material to be removed (farther or closer to tile glaze). Once the adjustment is set, it stays for any tiles/slabs thicknesses.

Blade tilt adjustment: by acting onto dedicated screw, blade can be tilted to prevent its rear chip-ping the edge of tiles/slabs.

Suitable with almost all angle grinders with power between 600-1100W.

Available for grinders with M14 arbor attachment (art. 433BCOH EU) and for angle grinders with 5/8" - 11 arbor attachment (art. 433BCOH US).

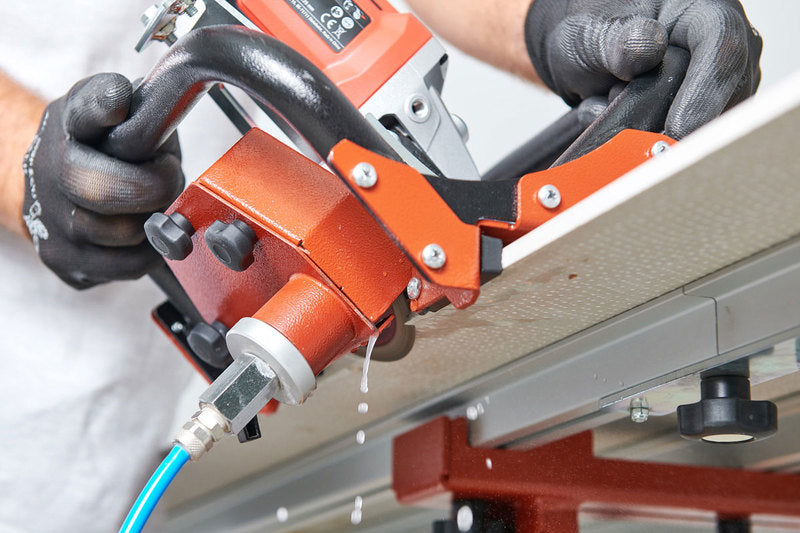

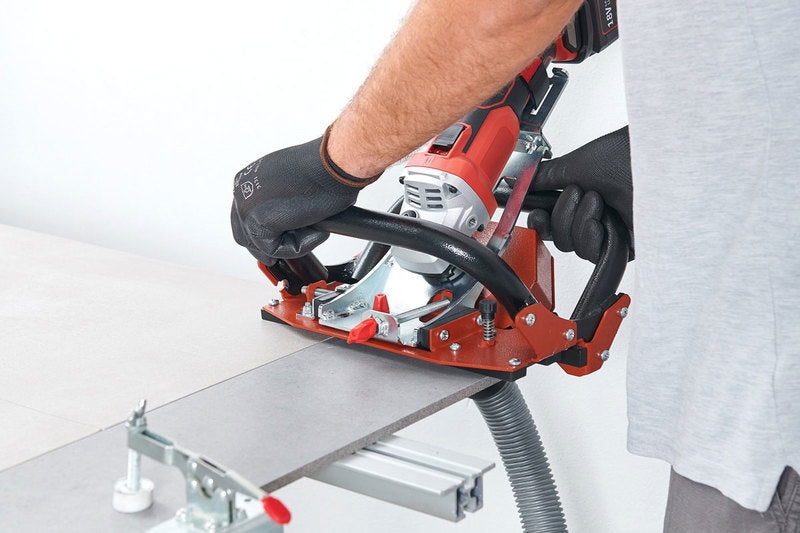

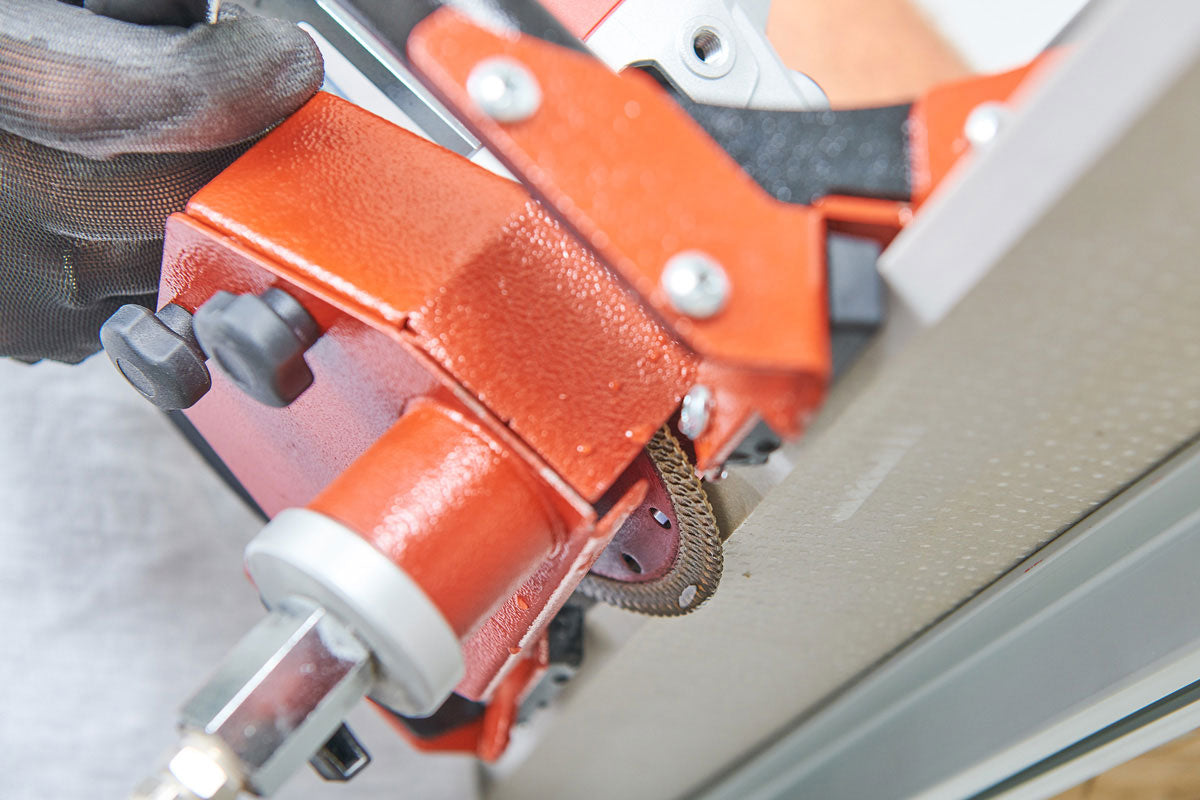

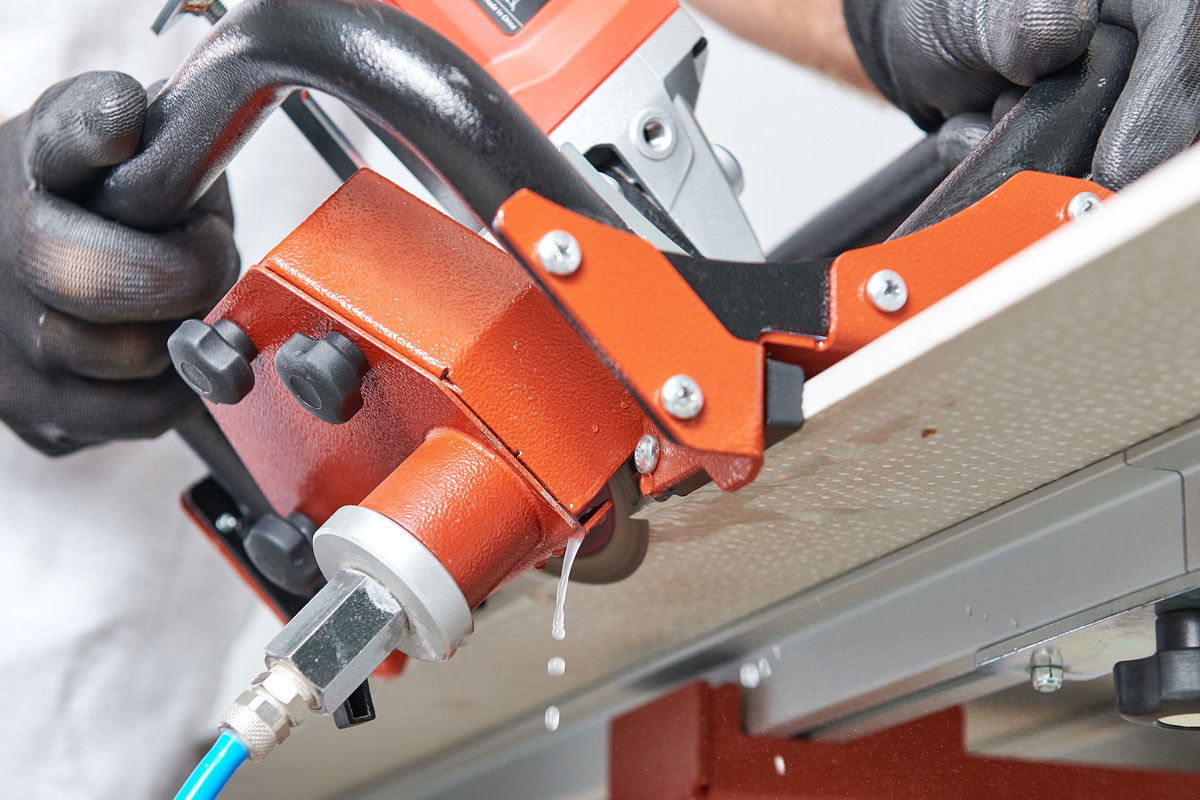

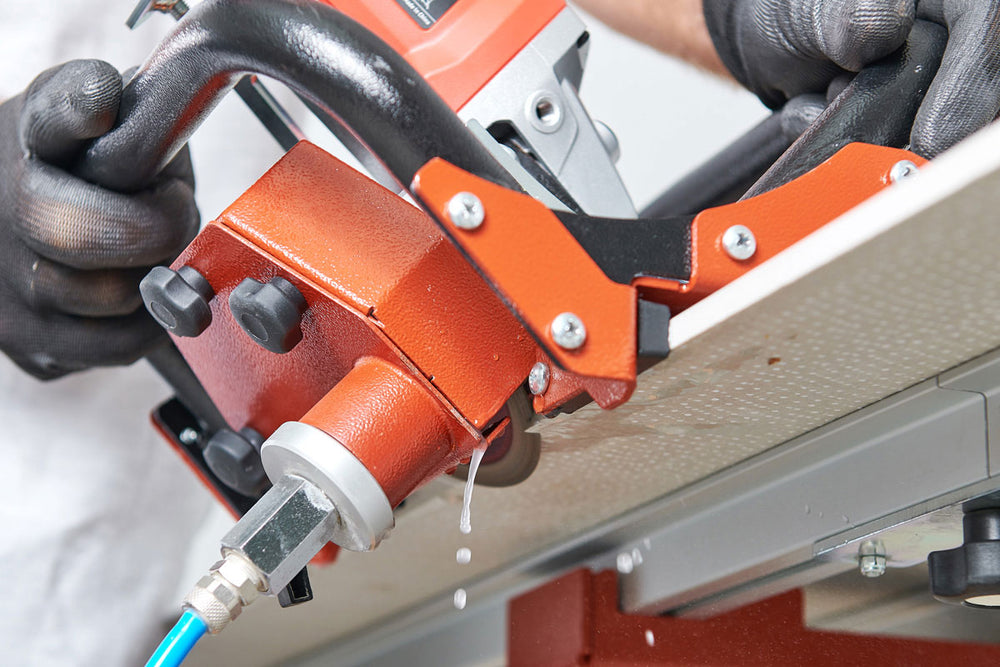

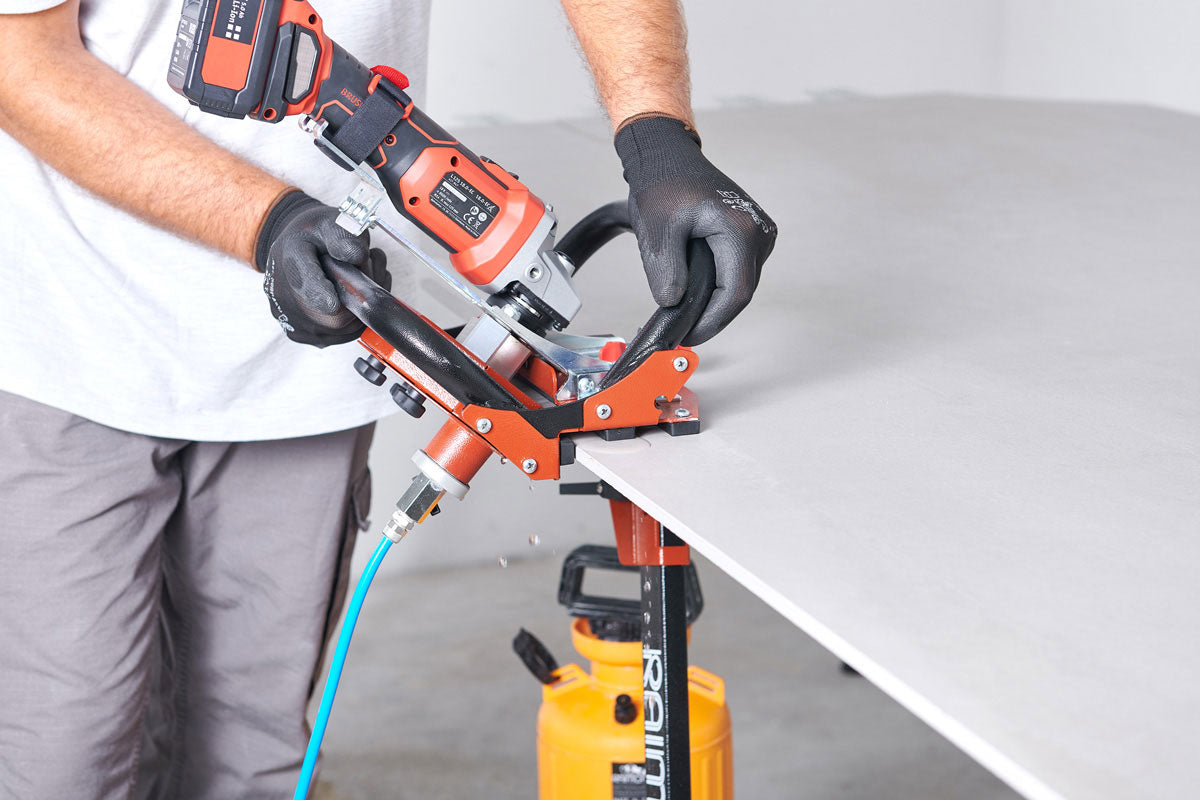

It can be either used dry (with a dust extractor) or with water (with kit for wet cut art.433PWW A).

  • Performs 45° miter cut.
  • High quality finish.
  • Fast and precise mitering.
  • Maximum tile thickness of ⅝" (16mm)
  • All 600-1100W angle grinders.
  • Grinder with ⅝” (11mm) arbor attachment.
  • Use with 4½" blade.
  • No rail required.
  • Use edge of tile as a guide.
  • No length limit.
  • Two handle to allow necessary pressure.
  • Adjust the miter with knobs calibration.
  • Anti-scratch plastic slides ensure optimal smoothness.
  • Depth can be adjusted by a simple turn of a knob.
  • Dry or wet use.
  • Use proper GFCI protection around water.
Does not include grinder or blade.
