Lauxes Grates Linear shower drain Tile Insert - Silk Silver 7ft

$504.00

Description

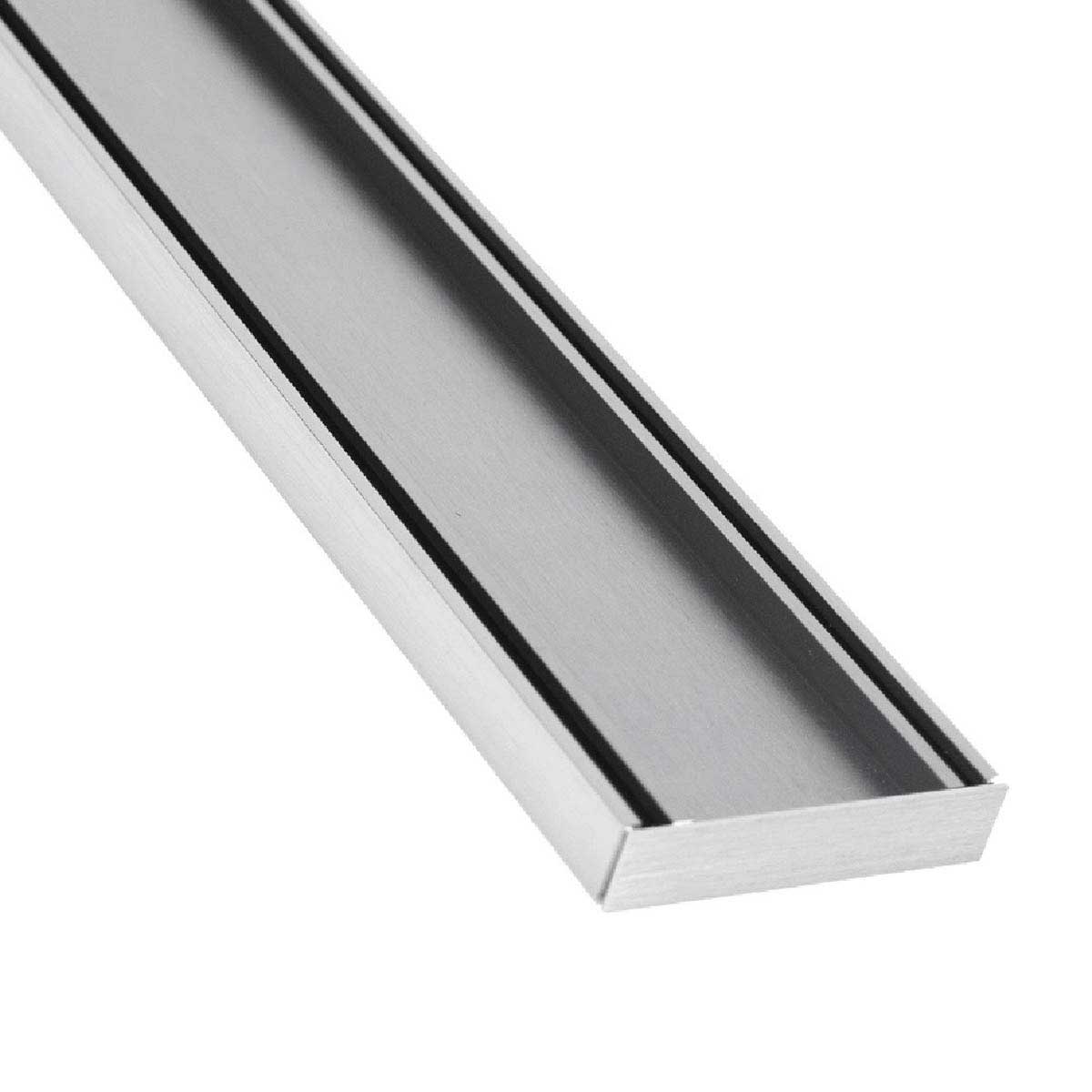

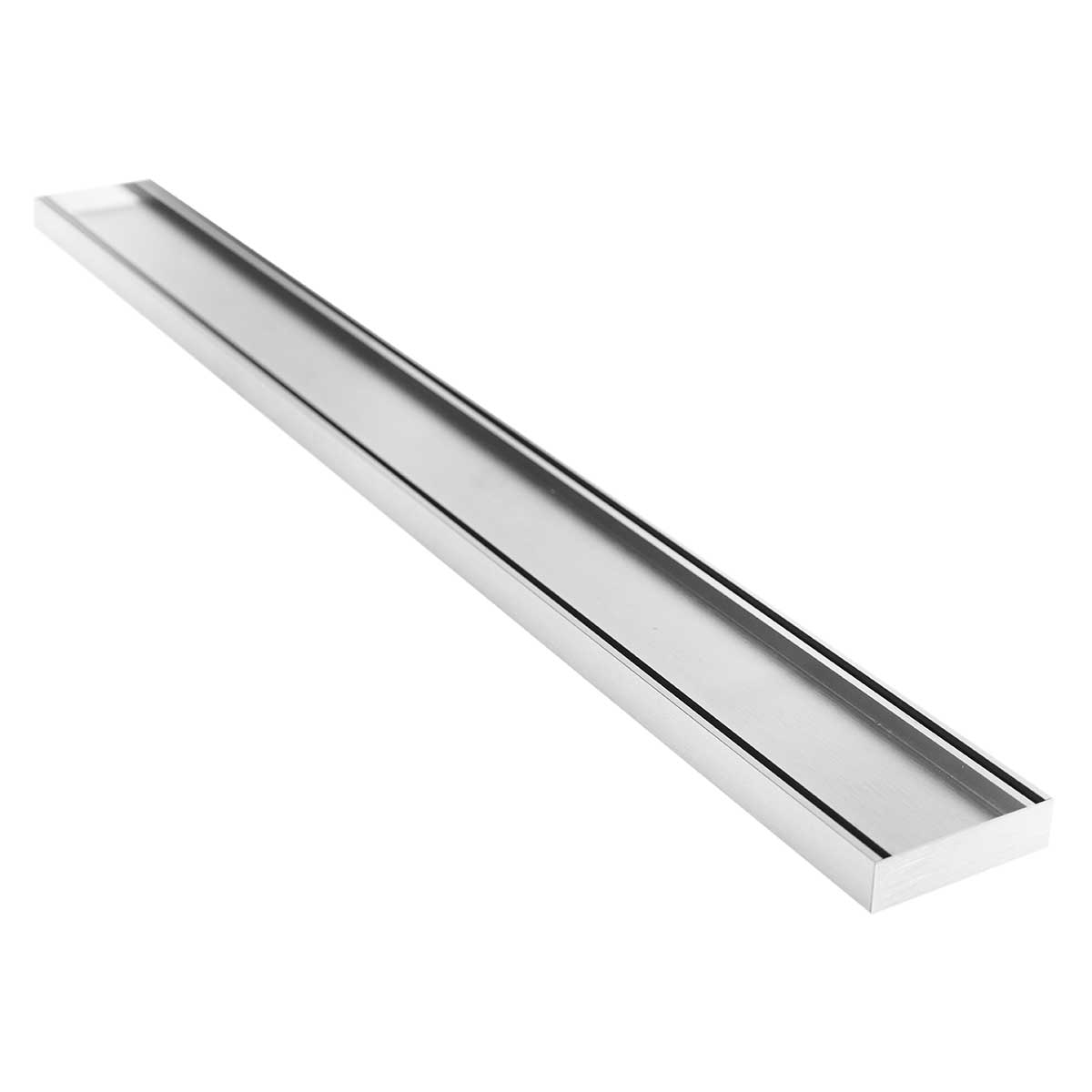

Lauxes Grates Linear shower Drain Slimline Tile Insert - Silk Silver 84 inch

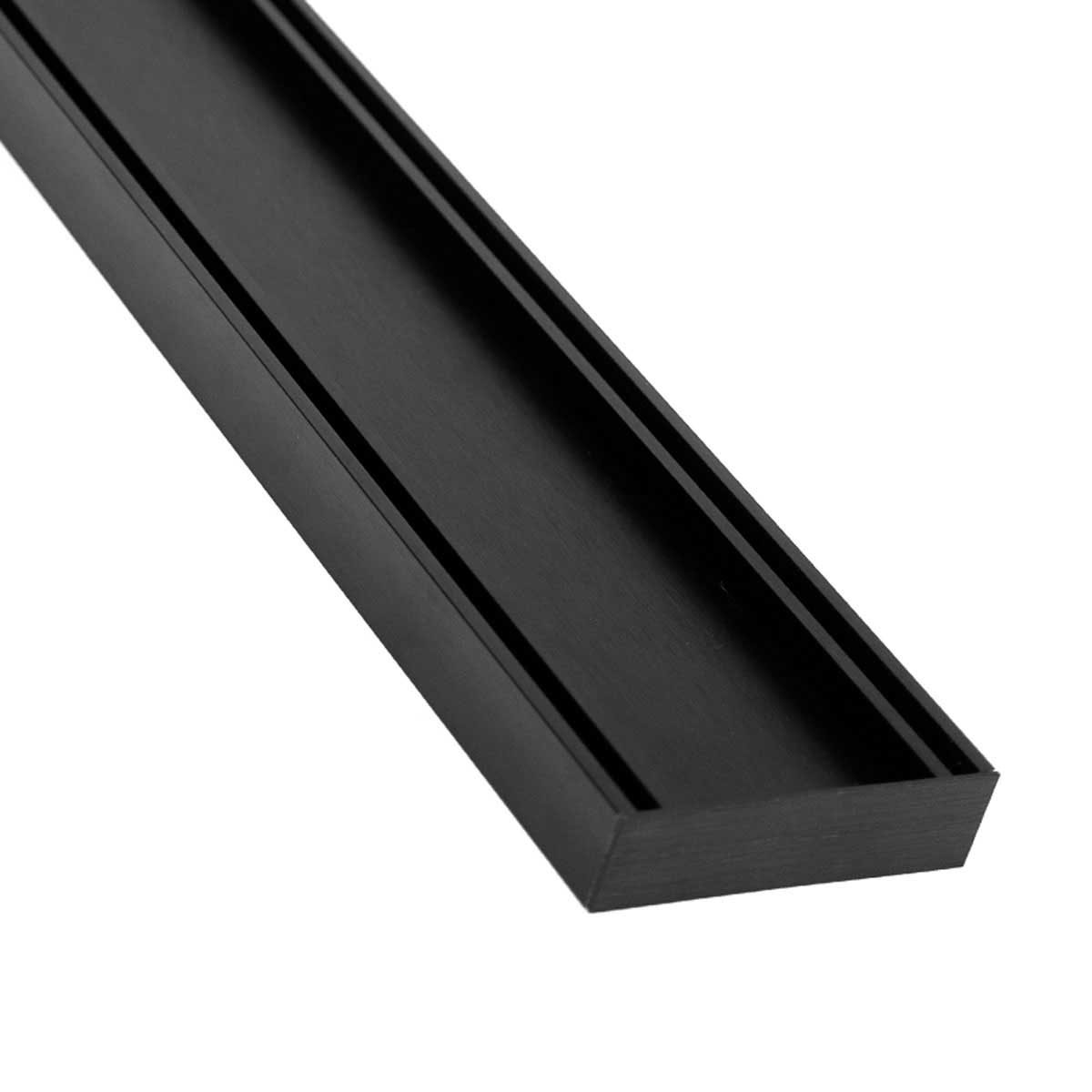

Available Color; Silk Silver, Midnight Black and Matte Gold

Material - Anodized Aluminum

COMPLETE SET - 7ft Channel and Grate, Pair of end caps, 2" Waste and Hole saw (1 Hole saw per order)

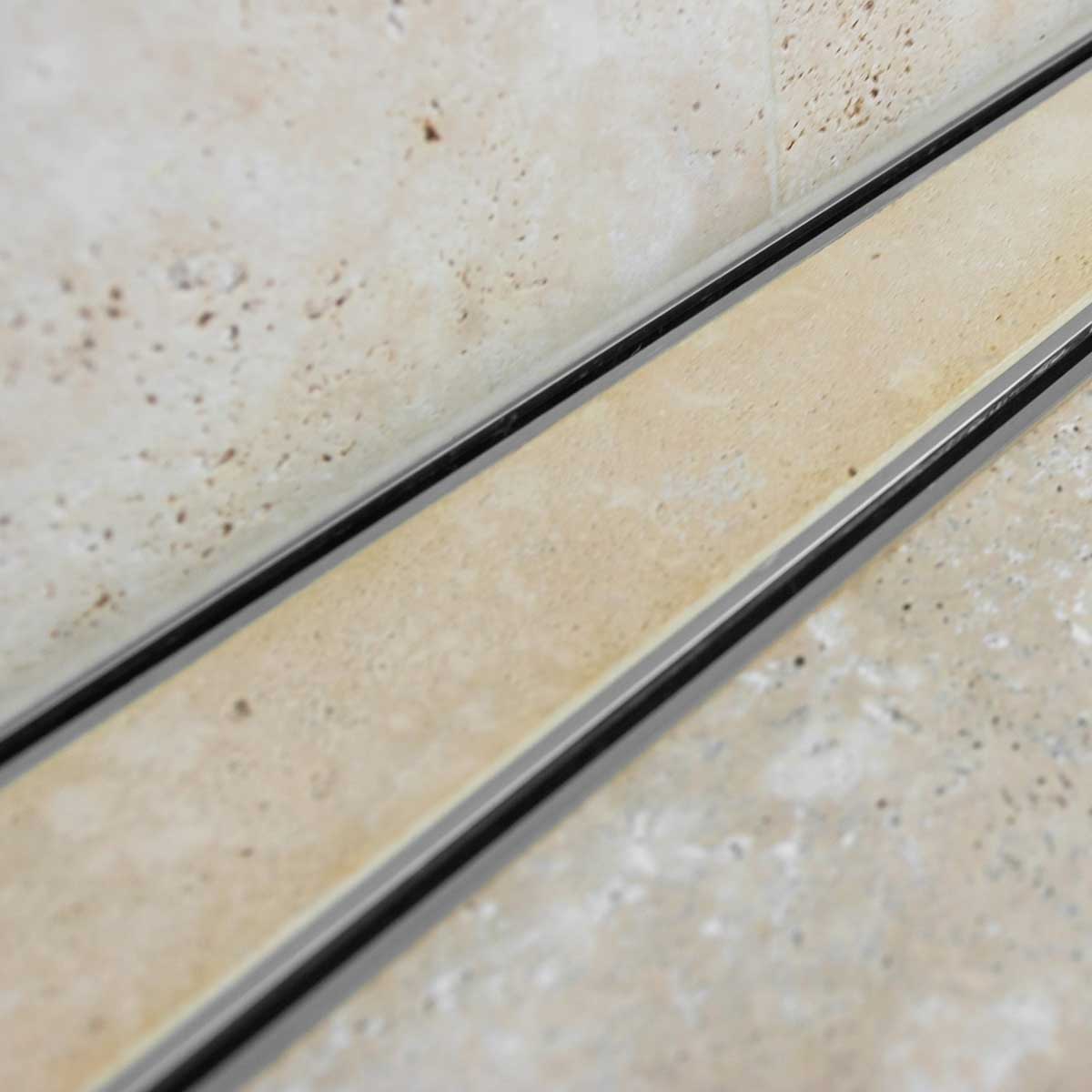

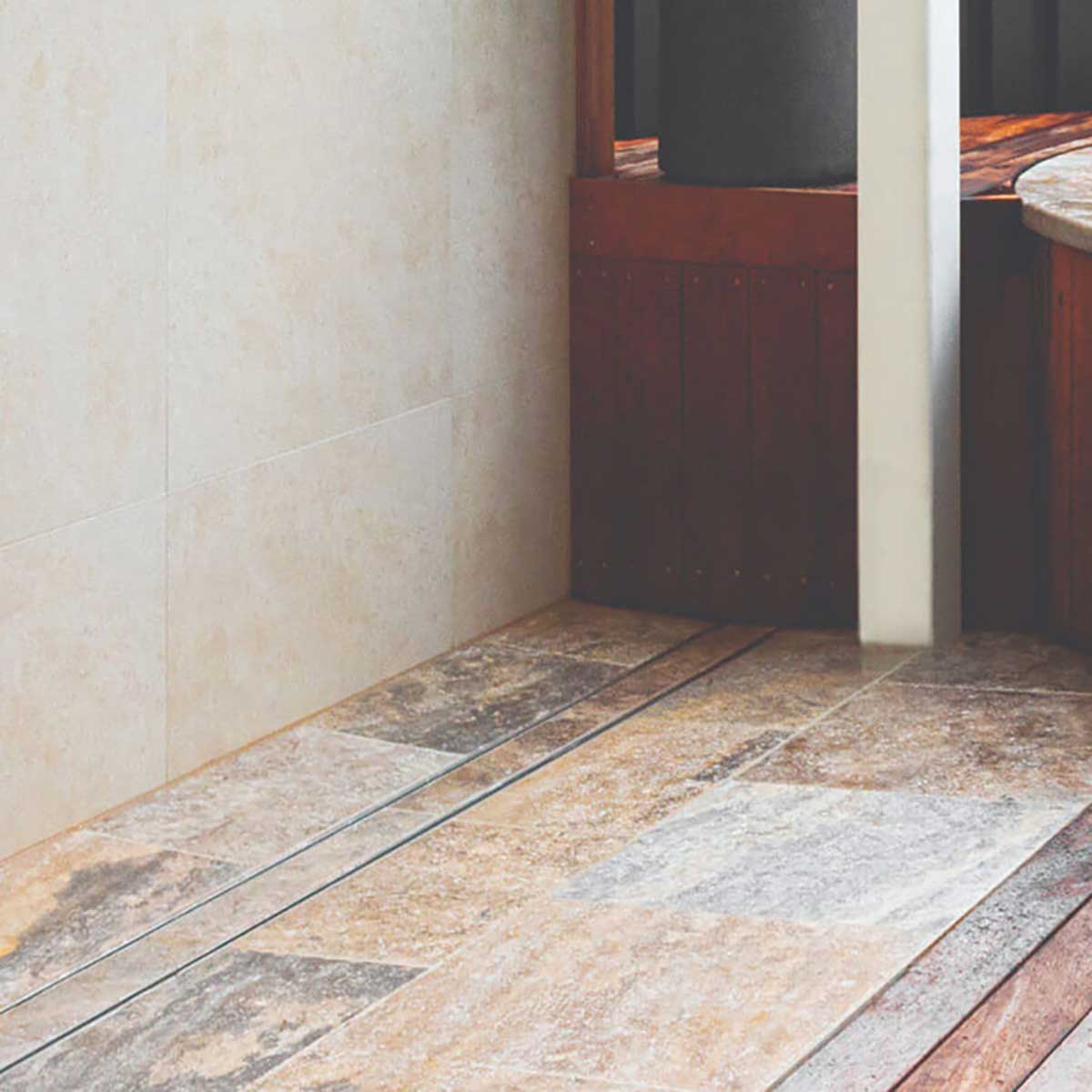

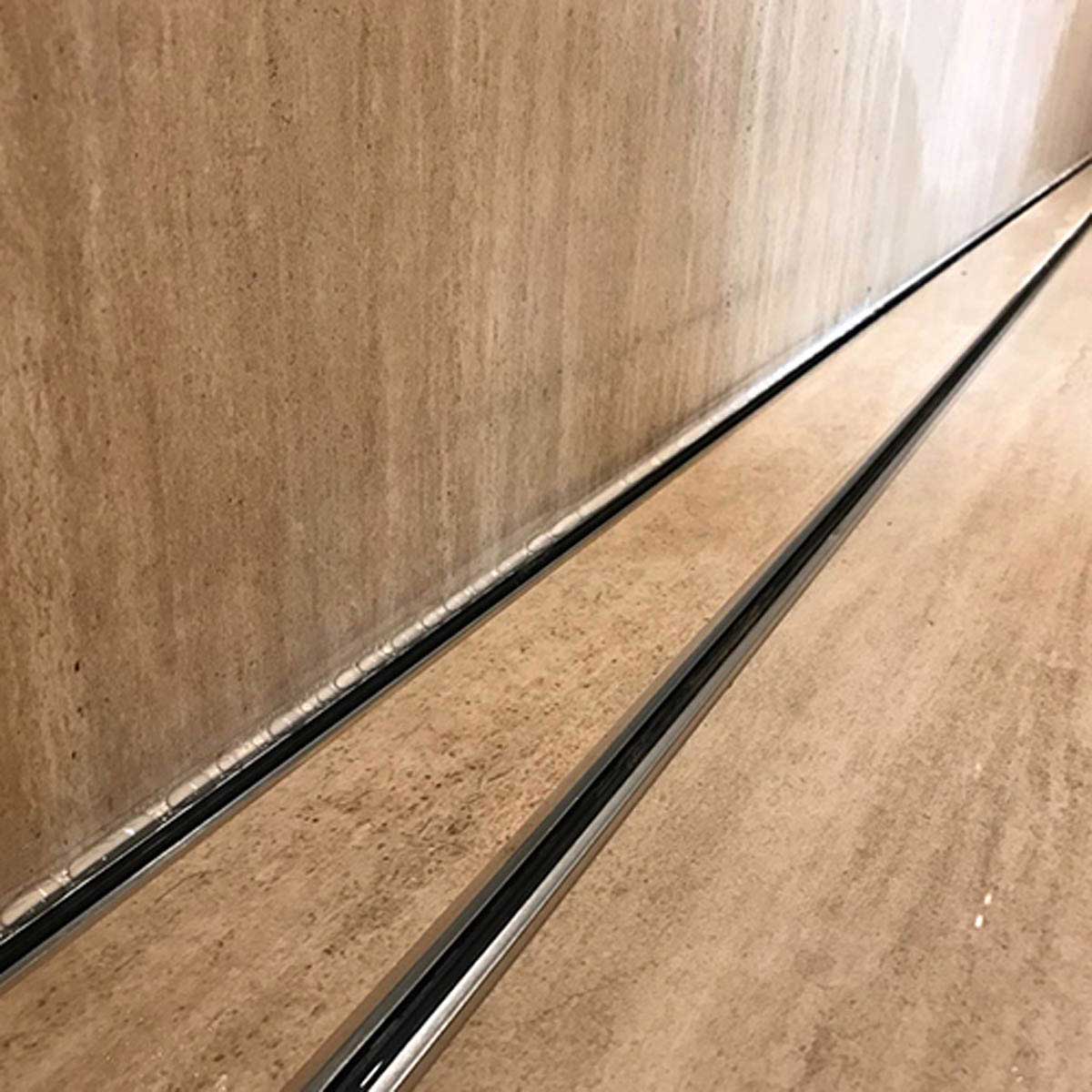

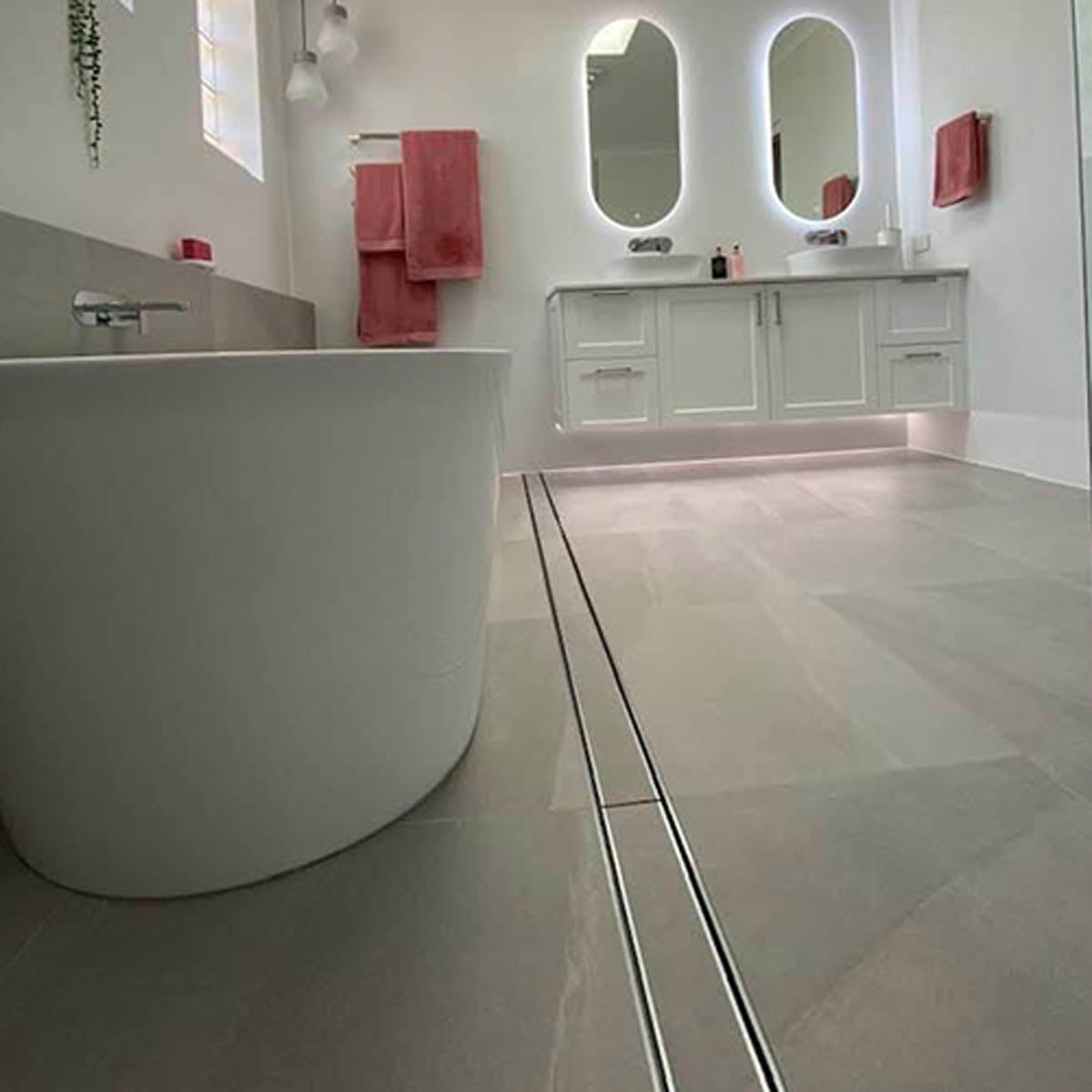

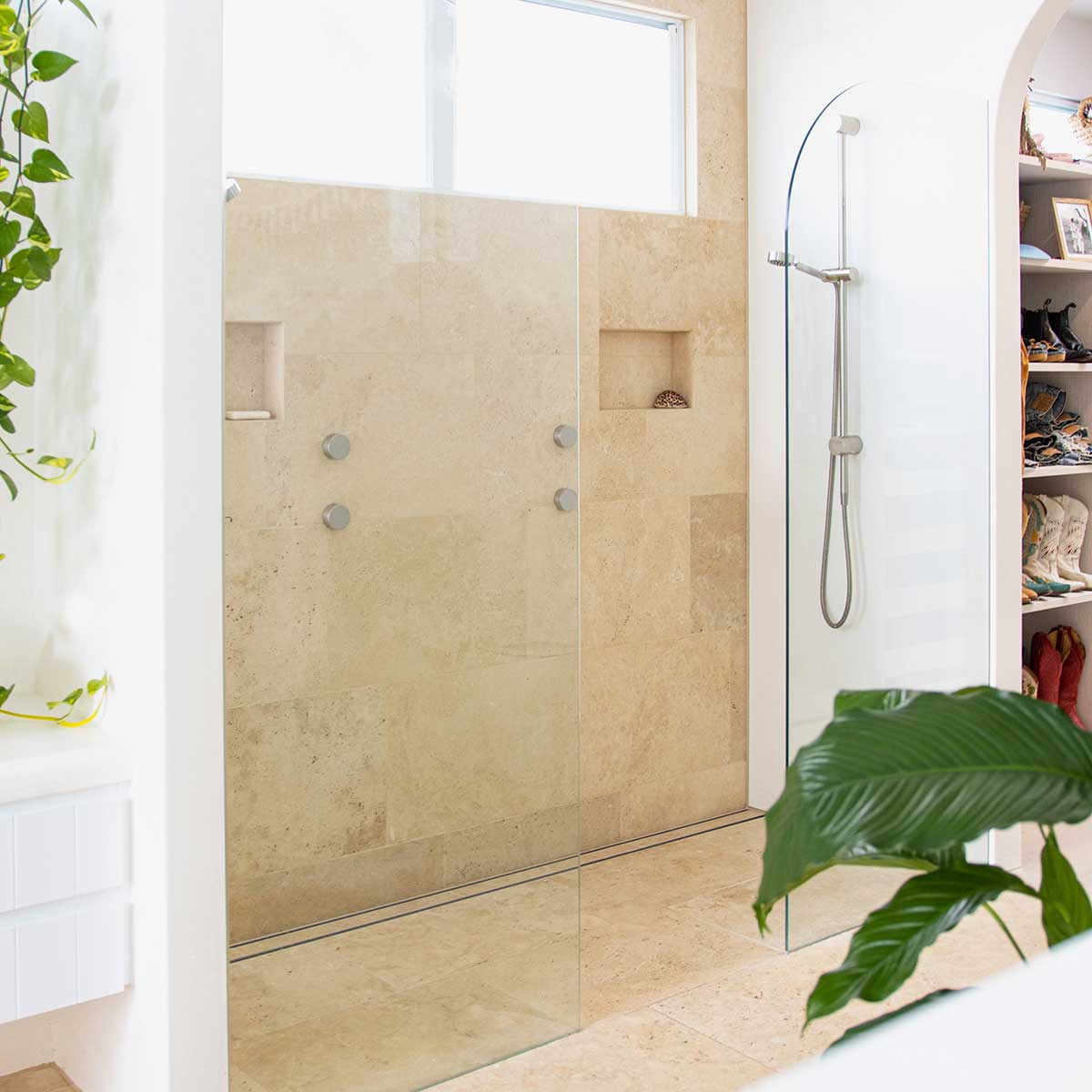

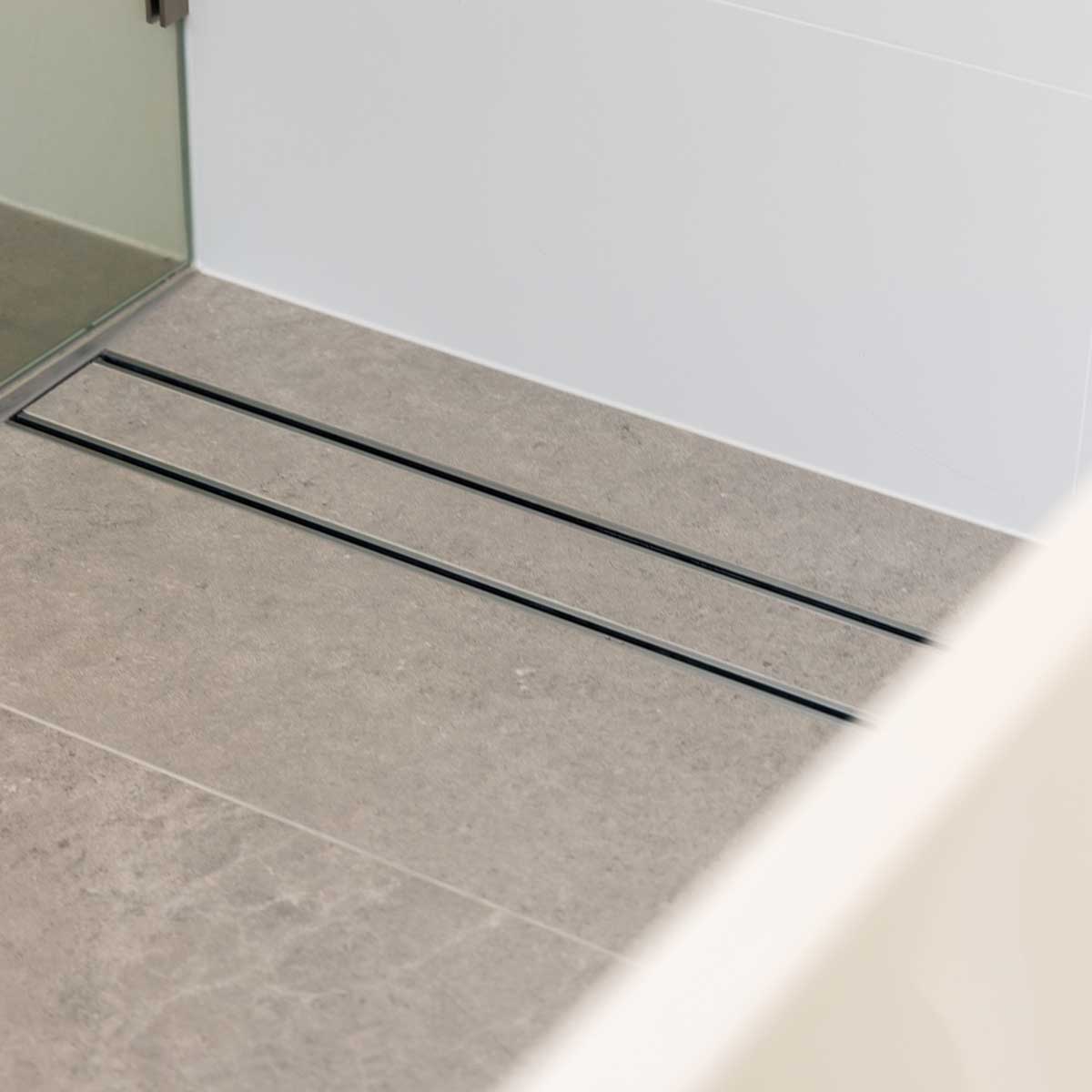

Shower drain that can be faced with the same tile you are installing on the shower floor

The world’s thinnest tile insert grate, the Slimline Tile Insert 21 is perfect for builds and renovations with height requirements making it easier to achieve your falls. All of our grates are UV Stable and come with a 25 year warranty against fading. Made from anodizing aluminium and backed by a Lifetime Rustproof Warranty, these grates are ideal for indoor and outdoor projects, offering a practical and customisable drainage solution.

Square shape. It's easier to cut tile to a square drain than to cut, nip and grind it to fit a round one.

Dimensions:

Length - 72" (2133.6mm)
Width - 4“ (100mm)
Depth - 1” (26mm)
Weight Load Capacity - 10.2 ton - medium duty

Features

  • Available in lengths up to 18 ft (ability to extend further using Lauxes joiners)
  • Easy to cut onsite for desired length
  • Waste outlet can be positioned anywhere along the bottom tray (recommended outlet sizes: 72mm and 80mm)
  • Suitable for tiles up to 7/16” (10mm) thick
  • Joiners for easy extension

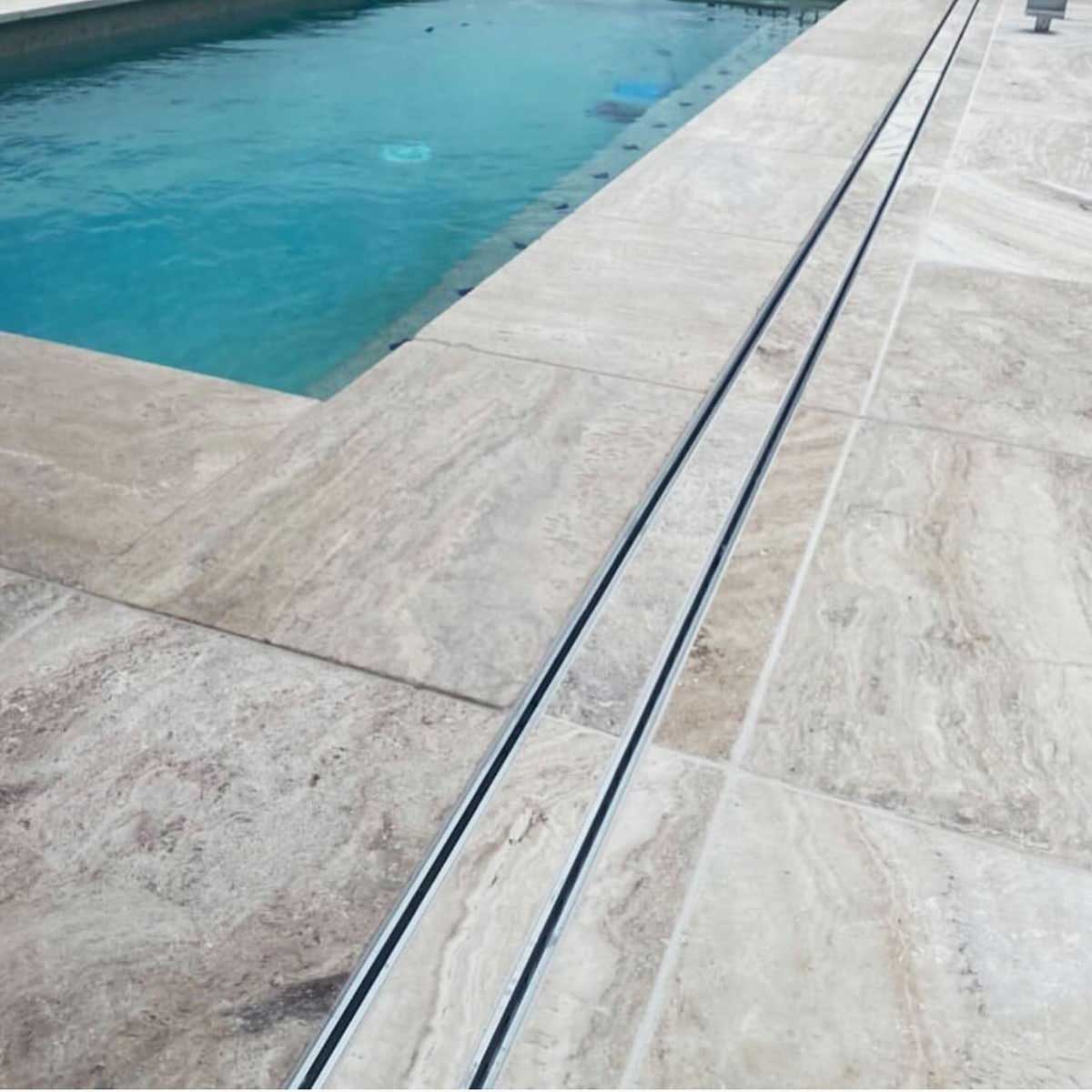

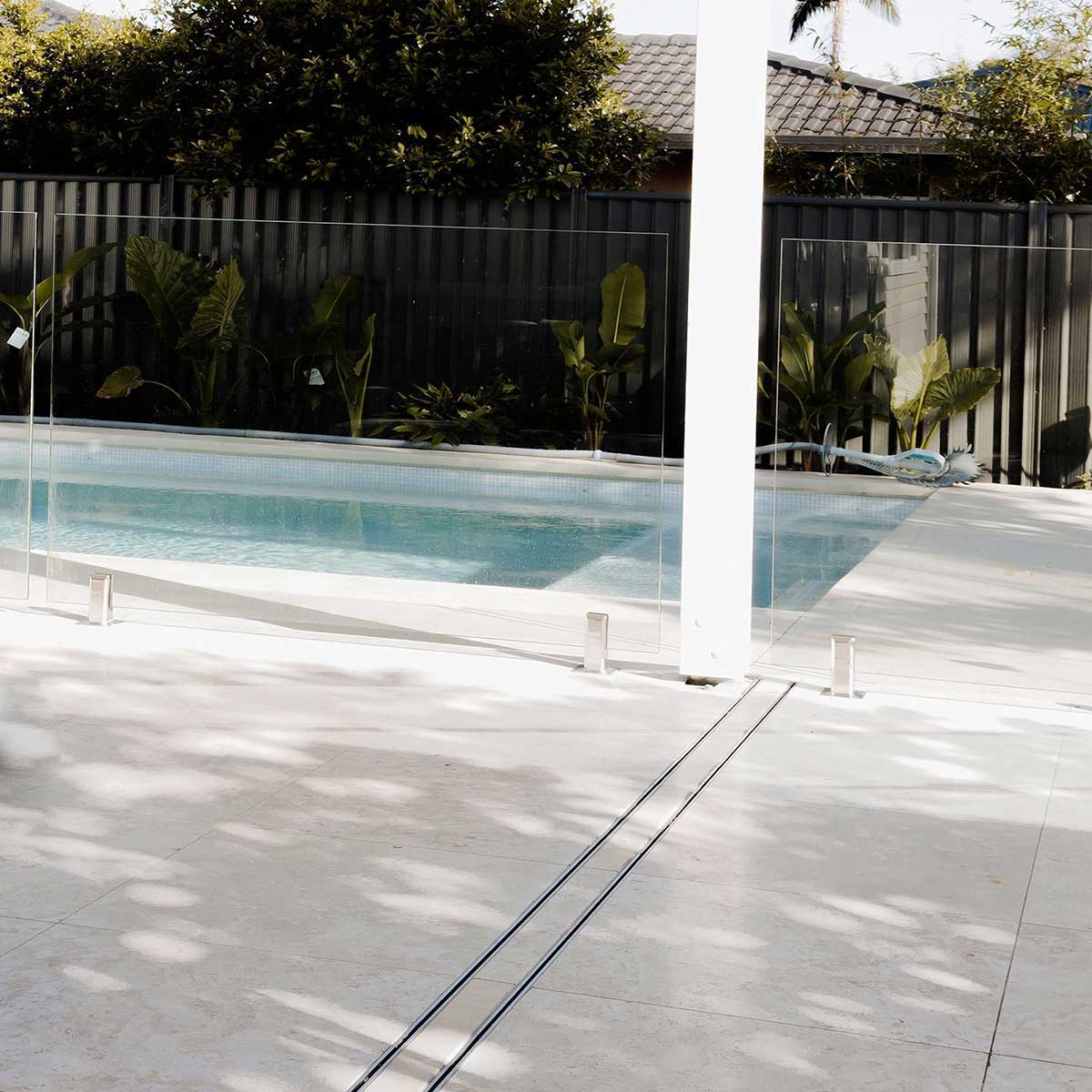

  • Applications - Indoor and Outdoor
  • Easy roll out system for cleaning
  • UV stable
  • Lifetime Rustproof

Key Features

  • Rustproof.
  • Lightweight.
  • Top grate easily removed for cleaning.
  • Different colour choices to suit application.
  • Easy to cut to desired length.
  • No welding required.
  • No major plumbing involved as waste can be positioned anywhere along the bottom tray.
  • Ability to extend beyond 5.6m with the use of Lauxes joiners

Carefully Designed

Lauxes Floor Grates are carefully designed and manufactured from anodised aluminum to create a robust, cost effective and versatile drainage solution.

With Lauxes Floor Grates there is no compromise on functionality or style when creating designer living spaces.

CUTTING INSTRUCTIONS AND INSTALLATION

For ease of cutting Lauxes grates, we recommend using a compound miter saw fitted with a multi-material cutting blade 80 tooth or more. We also recommend using a Lauxes TCT hole saw to drill the hole for the waste outlet.

1. Cut the bottom tray 1/8” (3mm) shorter than desired length to allow end caps to be fitted.
2. Cut the top grate 1/32” (1mm) shorter than the bottom tray to allow for easy roll-in of top grate and tidy fit.
3. Using a suitable size Lauxes hole saw for your waste outlet, drill out the hole at the required position to align with the waste pipe in the floor.
4. Insert the end caps into bottom tray and secure with a bead of silicone on the outside of tray.
5. Place silicone around the lip of the waste outlet and secure to the underside of bottom tray at the recently drilled hole.

* During installation use a template to ensure the grate does not come in contact with any wet cement based products.
** Regular, gentle cleaning with soapy water is recommended. Do not use abrasive cloths or acidic chemicals on the grates.
*** When glueing tile, use a neutral cure silicone.

Warranty

Lauxes grates are carefully designed and manufactured to the highest standard with meticulous attention to detail. It is because of this care we stand behind your recently purchased unique, cost effective and rust proof product.
Damages arising from improper/insufficient/negligence care or installation not in accordance with AS/NZS 3500.2 or manufacturers specifications will void the product warranty.
If at any time the product itself should develop any defect, Lauxes Grates agree to correct the defect(s) without charge to the registered purchaser. This guarantee does not provide coverage of repairs necessitated by normal wear, misuse, accidental damage or as a result from changes in temperature.

Lauxes Grates products do not form part of the waterproofing
All Lauxes grates and accessories hold UPC Certification

In stock - Ship Same Day
