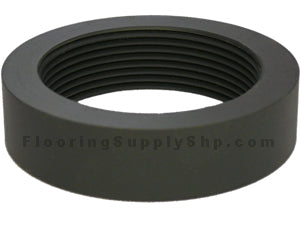

Ebbe Drain Bond Adapter 3 inch E206

$17.05

Description

Ebbe Square drain Adapter 3" SCH 40 PVC

The Ebbe E206 Adapter is used to make a custom thread reducing adapter from 3" to 2". This works for 3" Nom. three piece shower drain fittings.

  • Adapt directly to 3" SCH 40 ABS or PVC Pipe.
  • Use where waterproofing not requirements
  • Outdoor on grade applications

Instructions:

1. Bond the E206 adapter into the I.D. of the threaded barrel portion of a three inch drain Riser using PVC Cement or epoxy adhesive.
2. Cut off the lower portion of the 3" threaded barrel just above the adapter (approx. 1" long)

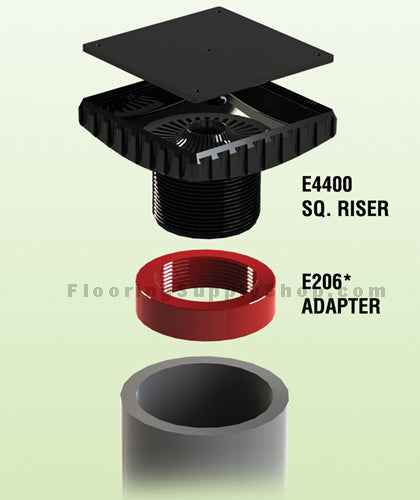

3. Use this 1" bonded portion of the barrel as an adapter. Thread it into the 3" drain's clamping flange and thread the Ebbe E4400 Drain Body into its I.D..

Adapters are required when connecting EBBE Square Drain.

Links about Ebbe drain

Converting Commercial Drains to Ebbe Square Drains

Ebbe Shower Drain Frequently Asked Questions - Ebbe Square Drain with Quick Pitch Installation Instructions
