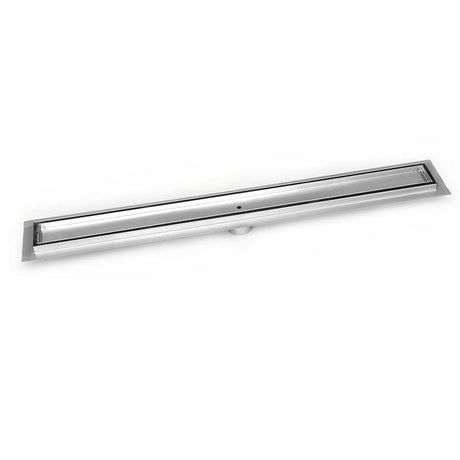

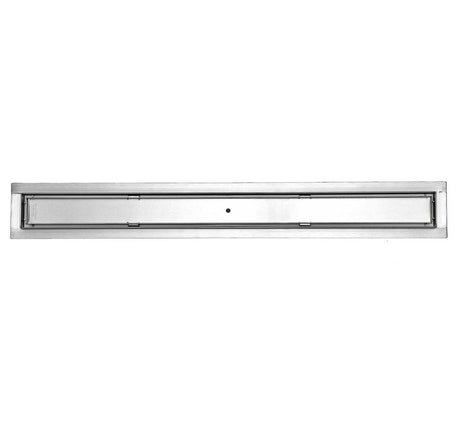

Serene Linear Drain Tile Insert

Serene Drains Linear Shower Drain Tile Insert Style by SereneSteam

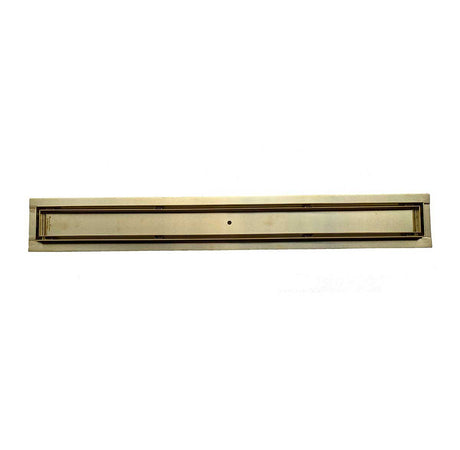

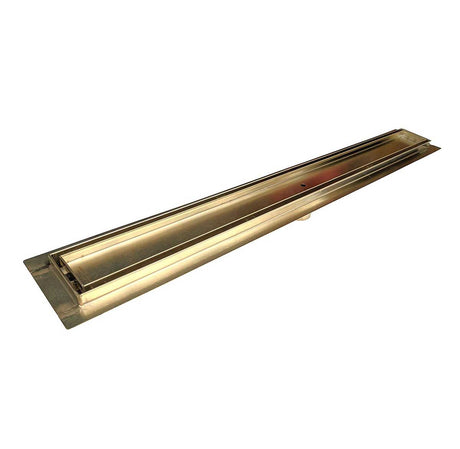

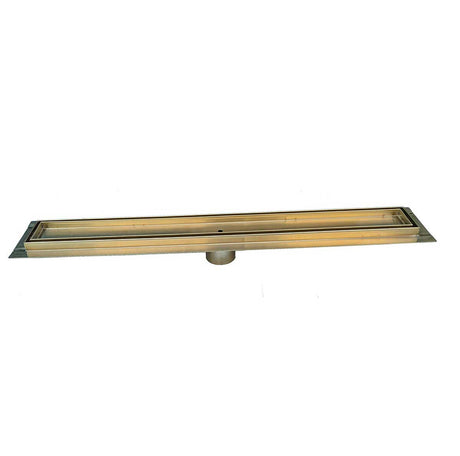

Available Color; Brushed Nickel, Matte Black, Satin Gold and Matte White

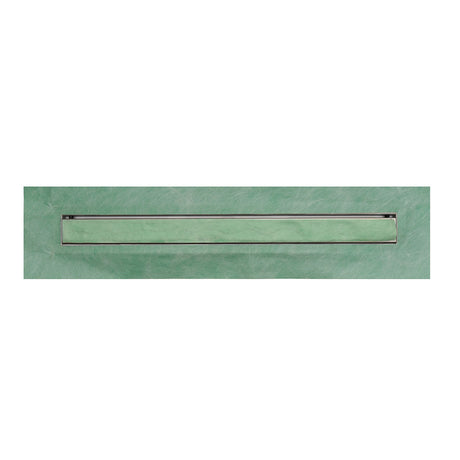

Shower drain that can be faced with the same tile you are installing on the shower floor

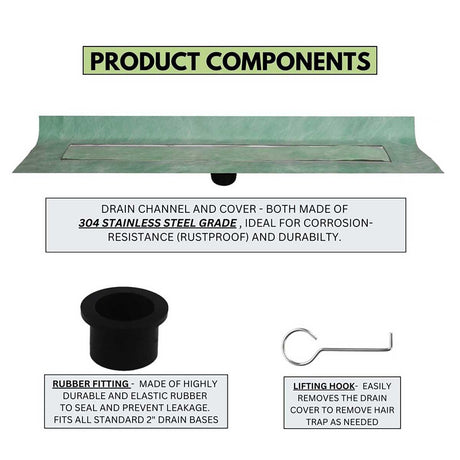

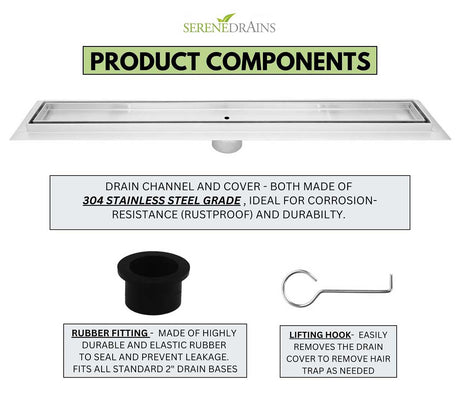

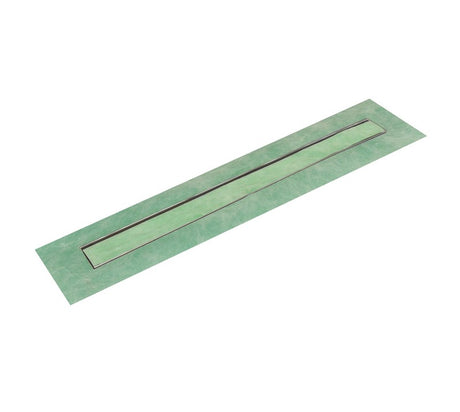

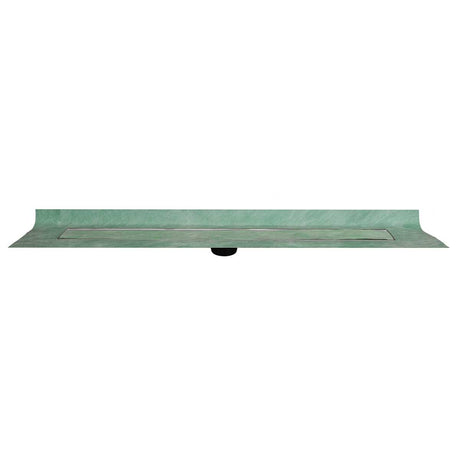

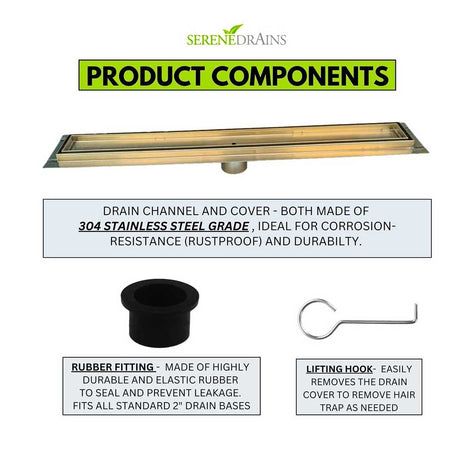

COMPLETE SET - Channel Body, Tile Insert Grate, Drain Rubber Fitting, Drain puller key, Waterproofing membrane sheet around the drain flange (not require but included)

Optional: ABS or PVC or Cast Iron CPE Membrane Fitting, Clad Flexible Coupling, Stainless Steel Hair Trap

Square shape. It's easier to cut tile to a square drain than to cut, nip and grind it to fit a round one.

Superior Quality at an Affordable Price

Flange Body Edge designed for use with any and all types of waterproofing, included and not limited to "hot-mop" painted or liquid membranes, Sheet Membrane, Vinyl waterproofing etc.

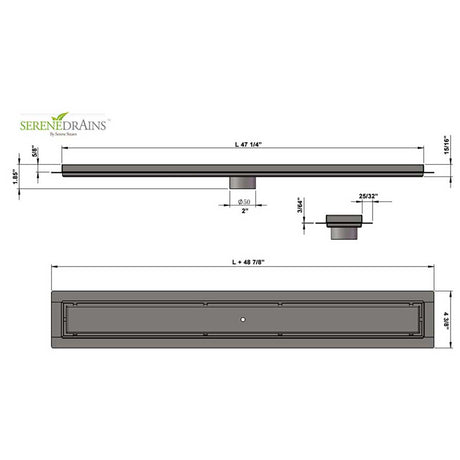

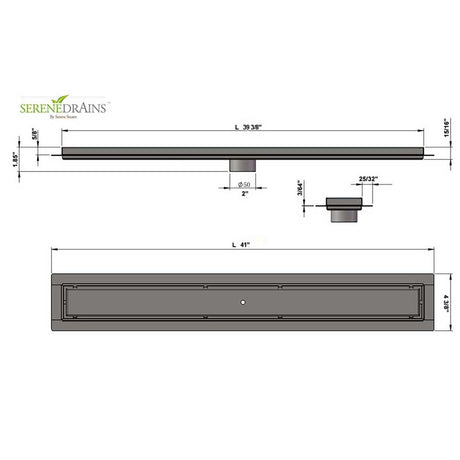

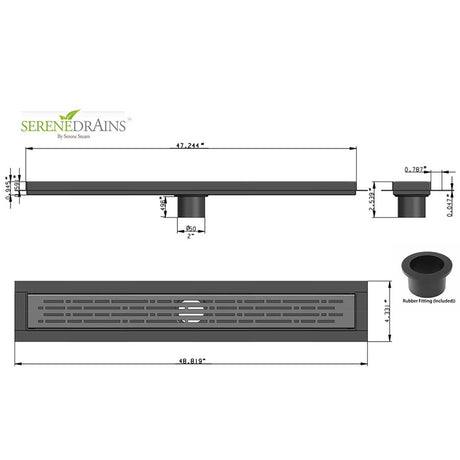

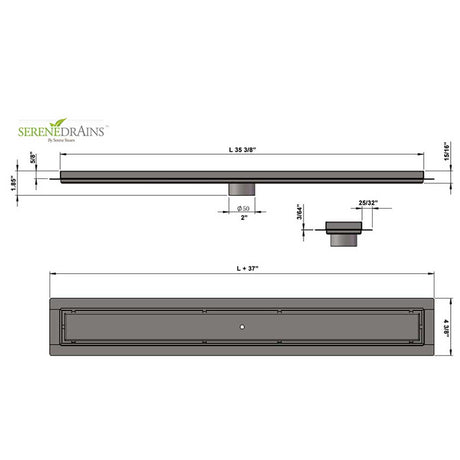

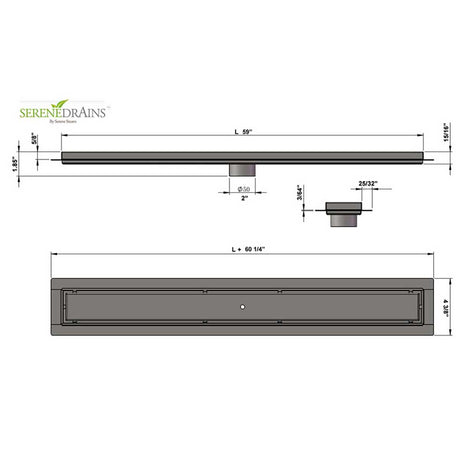

Approximately Dimensions:

Length 16" (400mm), Intake 7.80 sq. in.
Length 24" (600mm), Intake 11.67 sq. in.
Length 30" (762mm), Intake 14.82 sq. in.
Length 35.43" (900mm), Intake 17.48 sq. in.
Length 39.37" (1000mm), Intake 19.39 sq. in.
Length 47.25" (1200mm), Intake 23.20 sq. in.
Length 59.05" (1500mm), Intake 27.01 sq. in.
Length 72" (1828mm), Intake 32.91 sq. in.

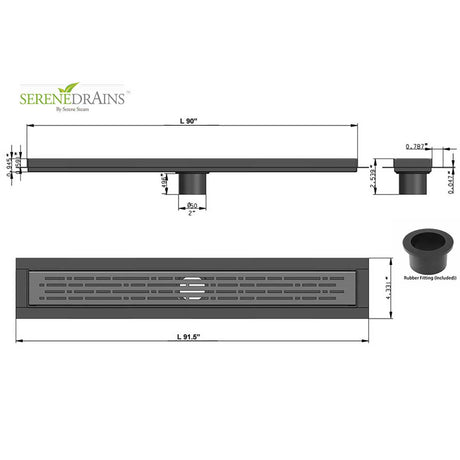

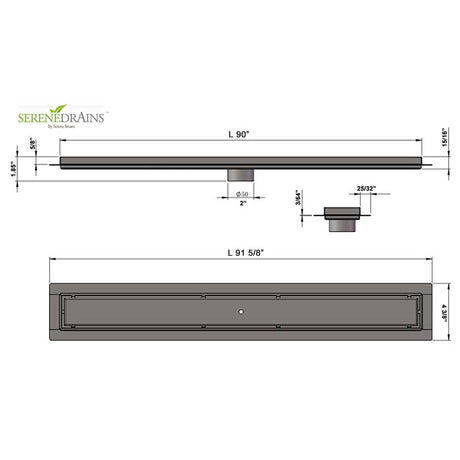

Length 90" (2286mm), Intake 41.16 sq. in

Construction

  • Pre-Slope Channel
  • 2" diameter central vertical outlet
  • Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
  • Channel width: 2 3/4" (70 mm)
  • Bodies are fully welded and leak tested prior to dispatch.
  • Brushed Stainless Steel finish.

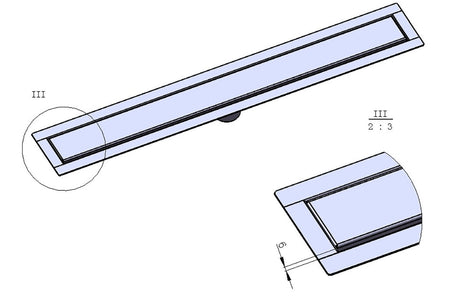

  • Compatible with tiles up to 10mm depth (14mm lip)
  • Stainless steel clad flexible coupling connects outlet to pipe system (optional)
  • Optional accessories include plumbing connectors and debris strainer
  • Stainless Steel 16 gauge 304 Grate
  • Superior Quality
  • Most Durable Finishes Available
  • Easily Maintained. No Special Cleaning

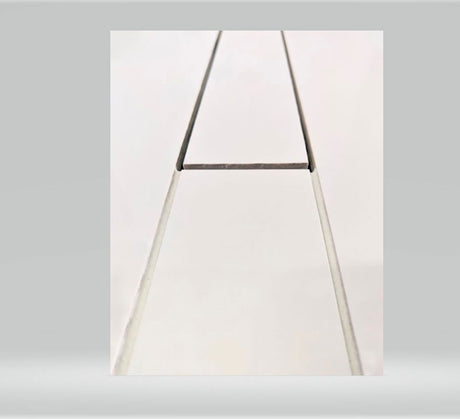

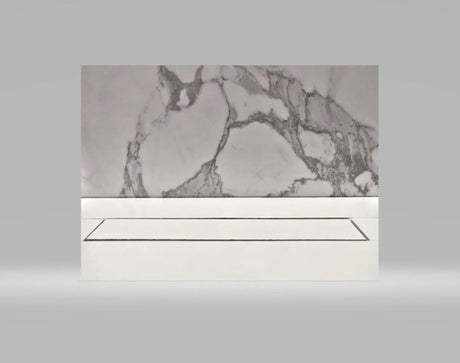

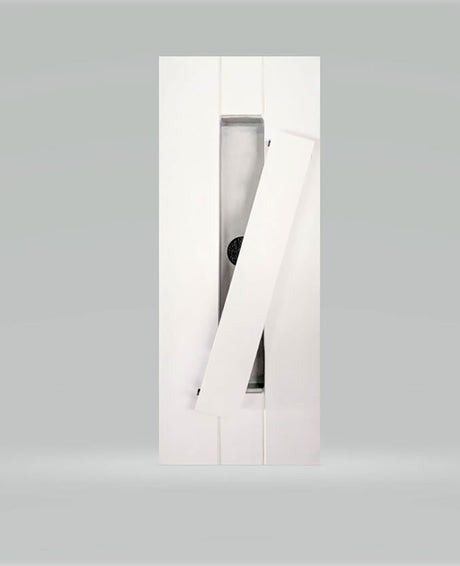

The SereneDrain Tile Insert Drain is a sleek and stylish solution for modern bathroom designs. This innovative drain system seamlessly blends into your tiled shower floor, creating a clean and uninterrupted aesthetic. With its minimalist design, the Tile Insert Drain eliminates the need for traditional drain covers and grates, giving your shower a seamless and uninterrupted appearance.

The SereneDrain is made from high-quality 304 Stainless Steel materials, ensuring durability and long-lasting performance. Its efficient water flow system effectively drains away excess water, preventing pooling and maintaining a dry and safe shower environment. The SereneDrain Tile Insert Drain combines functionality and aesthetics, offering a sophisticated solution for contemporary bathroom spaces.

Simple cuts are easily made, and waste little precious time. SereneDrains are sized to match standard 1/2", 1", 2”, and 4" tile without cutting. When cutting is needed, cuts are straight saw cuts. No grinding to match a radius. Consider how much easier glass mosaics will be to install.

Superior Quality - Heavy Drain Grate - Minimal Grout Rim - Designer finishes

In stock - Ship Same Day
