Eclipse II General Purpose Diamond Blade 5

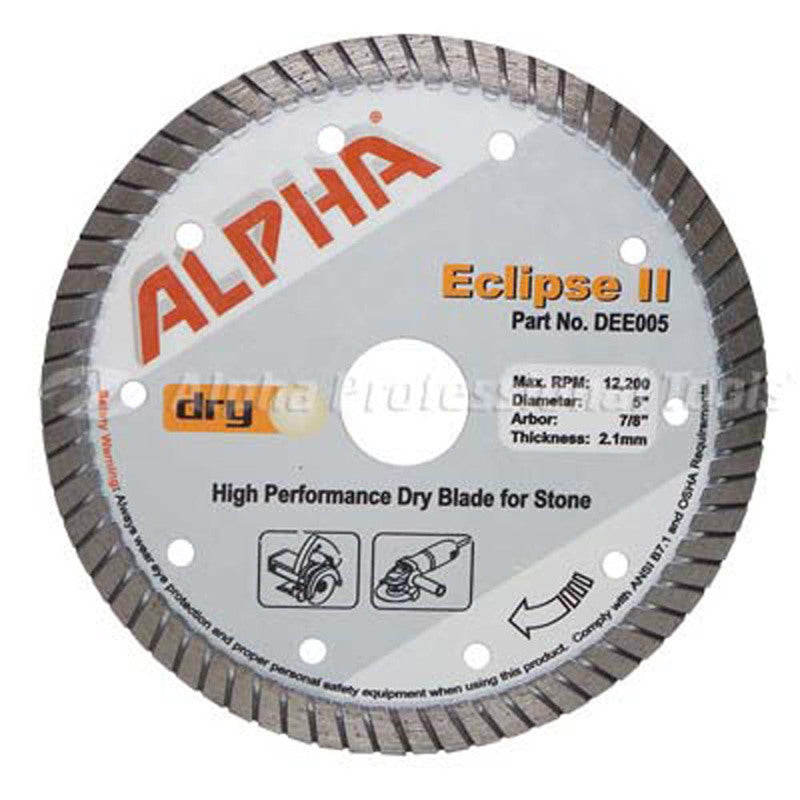

Alpha Eclipse II 5" General Purpose Diamond Blade

High Performance Dry Blade for Stone

General Purpose Diamond Blade for Stone Fabricators

High End General Purpose Blade for Granite

Can be used Wet or Dry

Thickness - 2.1mm
Maximum RPM - 12,200 RPM
Arbor(s) - 7/8"
For Use On - Stone Cutter/Angle Grinder

Alpha® Eclipse II has no equal when comparing price to

Alpha® Eclipse II is ideal for general purpose use on common building materials such as masonry, concrete and tile.
Alpha® Eclipse II fits on most of the angle grinders and wet stone cutters commonly found in the stone and construction industries.
Similar in design to Alpha® Plus, Alpha® Eclipse II is versatile and will cut tile, brick, block, concrete, slate and natural stone accurately and cleanly.

Tile installers, masons and general contractors will find Alpha® Eclipse II proved to be a reliable blade that will meet the challenges of cutting modern building products.

Alpha® Eclipse II is cost-effective, long lasting and provides consistent results without chipping.

Best for cutting:

  • Tile
  • Block
  • Concrete
  • Slate
  • Brick
  • Natural Stone

How to use

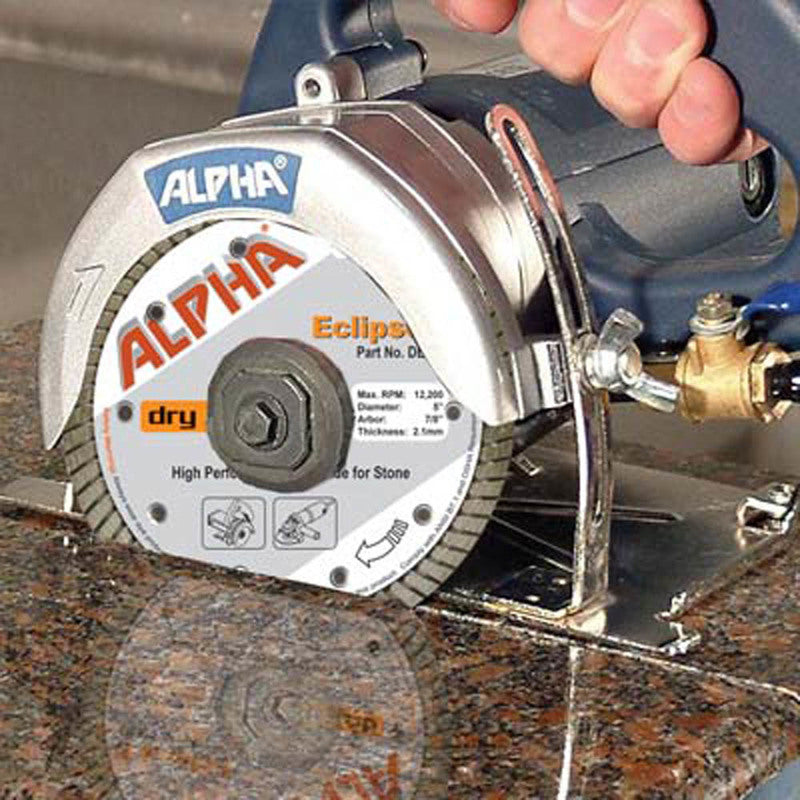

Mount the Alpha® Eclipse II blade onto the appropriate power tool designed for the blade diameter:

  • 4” diameter blades will fit the Alpha® AWS-110 Wet Stone Cutter and most 4” Angle Grinders.
  • 4-1/2” diameter blades will fit the Alpha® AWS-110, AWS-125 or 4-1/2” Angle Grinders.
  • 5” diameter blade will fit the Alpha® AWS-125 or 5” Angle Grinders.
  • 6” diameter blades will fit onto a 6” Angle Grinder.
  • 7” diameter blades will fit onto 7-1/4” Circular Saws or 7” Angle Grinders, and are supplied with a diamond knockout.
  • 8” diameter blades will fit onto 8-1/4” Circular Saws

When mounting the blade onto the power tool, make sure the blades directional rotation matches the spindle rotation of the power tool.

Step cutting is recommended to enhance the life of your blade.

Always make sure the power tool’s safety guard is mounted onto the tool. If the blade doesn’t fit with the safety guard on the tool, you’re probably using the wrong size power tool.

Helpful Hints

  • Use of water will prolong the life of your Dry Cutting blade. Using water will also keep harmful dust (Silica)
    out of the air.
  • We recommend the step cutting method to prolong the life of the diamond blade.
  • While cutting thick material, back off frequently to cool off the blade and prevent over-heating.
  • Use flanges and adapters which are specifically made for your power tool.
